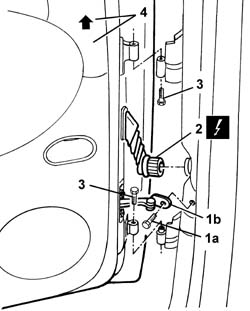

R.R. REAR SIDE DOOR

Operation 7210E38 · External parts

Removing

1. Undo the bolt (1a) which secures the door check strap (1b) to the door pillar and close the door to push the check strap back in.

2. Disconnect the electrical connections.

3. Undo the hinge bolts.

4. Lift the door and remove it.

Refitting

Refit the door on the hinges.

Tighten the hinge bolts.

Connect the electrical connection

Check the various appliances on the door are working properly.

Make the check strap come out and tighten the bolt.

Check the door alignment and, if necessary, - 7010A14 rear side door - adjust centering and moulding - includes adaptation of hinges and seals on door compartment
