R.R. FRONT BUMPER

Operation 7210E10 · External parts

Removing

- 7055B54 under-engine guard - r r

- 7055B64 Engine compartment DUST shield in front wheel arch (one), left or right - R.R. (left and right sides)

- 7055B42 Additional FRONT WHEEL ARCH (one), left or right - R.R. (left and right sides)

Lower the vehicle and open the bonnet lid.

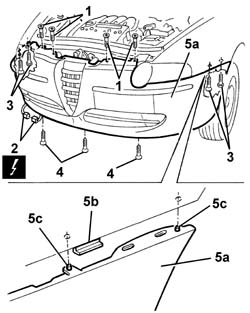

1. Undo the upper central bumper bolts.

Raise the vehicle.

2. Prise up from the retainer and disconnect the braid electrical connection from the front turn signals.

3. Working from both sides of the car, undo the bumper's side bolts.

4. Undo the lower bolts fixing the bumper.

5. Remove bumpers (5a) by releasing from side retainers (5b) and releasing locating pins (5c).

1. Working inside the right front wheel arch, undo the headlamp washer pipe band (if present).

2. Disconnect the pipe (if present).

Lower the vehicle.

1. Prise out the buffers if necessary.

If necessary, - 7205E10 Stripping FRONT BUMPER

Refitting

Check that the front bumpers are undamaged.

If carried out, - 7205E10 Stripping FRONT BUMPER

Refit the buffers if they were removed.

Connect the headlamp washer pipe and secure using the band.

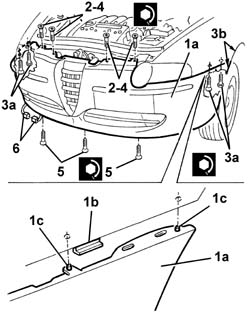

1. Position bumpers (1a) by doing up side retainers (1b) and locating pins (1c).

2. Screw in the upper bumer bolts without tightening.

3. Tighten side bolts (3a) and ensure the bumpers are aligned with the wing at the sides (3b).

4. Tighten the top central bumper retaining bolts.

5. Tighten the lower bolts fixing the bumper.

Connect the electrical connections and fit to the retainer.

- 7055B42 Additional FRONT WHEEL ARCH (one), left or right - R.R. (left and right sides)

- 7055B64 Engine compartment DUST shield in front wheel arch (one), left or right - R.R. (left and right sides)

- 7055B54 under-engine guard - r r
