Front brake disc - r r

Operation 3310A48 · FRONT DISC BRAKES

1.6 TS, 2.0 TS, 1.9 JTD 8V, 1.9 JTD 16V

Removing

Position the vehicle on the ramp.

Proceed with removal - 4450B10 Front WHEEL (one) - R.R..

1. Release the front brake caliper flexible pipe from the mounting bracket.

2. Undo the bolts (2a) and move the bracket (2b) complete with brake caliper (2c) without disconnecting the pipe.

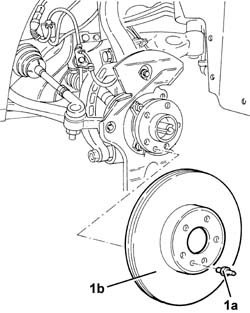

1. Unscrew the pin (1a) and remove the front brake disc (1b).

Refitting

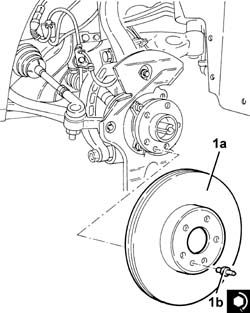

1. Refit the front brake disc (1a) in its seating and tighten its bolt (1b) to the specified torque.

1. Place the bracket (1a) complete with brake caliper (1b) in its seating and tighten the bolts (1c) to the specified torque.

Fit the front brake caliper flexible pipe to the mounting bracket.

Proceed with refitting - 4450B10 Front WHEEL (one) - R.R..

Remove the car from the ramps.

3.2 V6

Removing

Position the vehicle on the ramp.

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

Proceed with removal - 4450B10 Front WHEEL (one) - R.R..

Proceed with removal - 3310A30 FRONT BRAKE CALIPER (one) - R.R..

1. Unscrew the pin (1a) and remove the front brake disc (1b).

Refitting

1. Refit the front brake disc (1a) in its seating and tighten its bolt (1b) to the specified torque.

Proceed with refitting - 3310A30 FRONT BRAKE CALIPER (one) - R.R..

Top up the brake-clutch fluid level - 0010T64 brake and or clutch fluid check level and top up as necessary.

Bleed the air from the hydraulic braking system - 0010T65 hydraulic brake system bleed air.

Proceed with refitting - 4450B10 Front WHEEL (one) - R.R..

Connect the negative (-) battery terminal.

Remove the car from the ramps.
