REAR DISC BRAKES

Description 3310B

1.6 TS, 2.0 TS

CONSTRUCTION FEATURES

On all versions, the rear wheels are fitted with a brake system with solid discs and LUCAS floating aluminium calipers with automatic play take-up.

The brake caliper mechanism is operated mechanically by means of the handbrake lever [Characteristic of working principle 3340 A(B.S. ANTI-LOCK BRAKING SYSTEM .)].

The hub outer race is fitted with a multipolar magnetic ring that indicates wheel movements to the active ABS sensor [Characteristic of working principle 3340 A(B.S. ANTI-LOCK BRAKING SYSTEM .)] secured to the suspension arm.

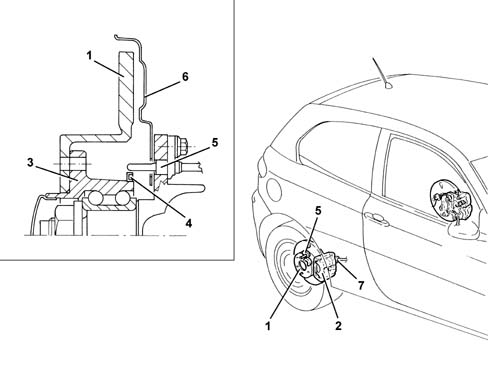

1 - Brake disc

2 - Brake caliper

3 - Hub outer race

4 - Multipolar magnetic ring

5 - ABS active sensor

6 - Guard

7 - Handbrake link anchorage
