FRONT DISC BRAKES

Description 3310A

1.6 TS, 2.0 TS

CONSTRUCTION FEATURES

Two different vehicle configurations have been adopted on the vehicle in view of weight and power differences between different versions:

• The 1.6 T. SPARK - 105 BHP version comes with solid discs and Theves floating aluminium calipers with automatic play take-up
• other versions cme with ventilated discs and Theves floating cast iron calipers with automatic play take-up

A multipolar magnetic ring fitted to the inner hub bearing race indicates wheel movement to the active ABS sensor [Characteristic of working principle 3340 A(B.S. ANTI-LOCK BRAKING SYSTEM .)]

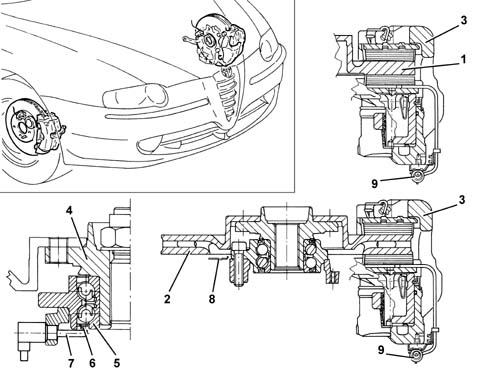

1 - 1.6 T. SPARK - 105 BHP brake disc

2 - 1.6 T. SPARK 120 BHP 2.0 T. SPARK Selespeed

3 - Brake caliper

4 - Hub

5 - Hub bearing

6 - Magnetic ring

7 - Active ABS sensor

8 - Guard

9 - Pad wear warning light connection
