Engine oil lubrication circuit

Description 1084B

1.6 TS

ENGINE OIL PUMP

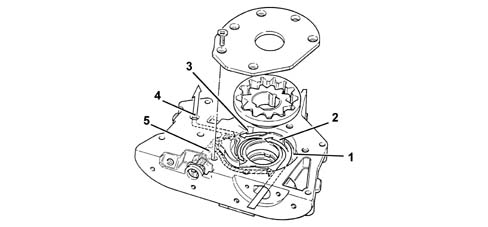

The engine oil is drawn in from the sump by means of the vacuum created by the rotation of the sprockets fitted on the crankshaft.

Vacuum is present between the sprocket separating wall (2) and the oil sump suction pipe.

Pressure instead develops after the separating wall (2) in all the oil delivery pipes (4).

When the pressure exceeds 5 bar, the force exerted on the limiting valve (5) overcomes the reaction of the spring below and moves the valve to open the connecting pipe between the pressure chamber (3) and the low pressure chamber (1).

1 - Low pressure chamber

2 - Separating wall

3 - Pressure chamber

4 - Oil delivery pipe

5 - Pressure relief valve

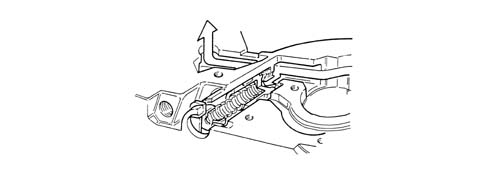

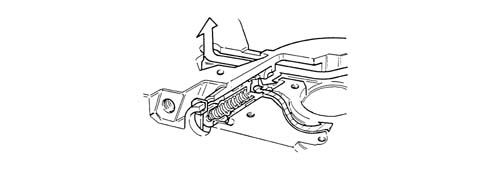

Closed operating position of oil pressure limiting valve.

Bypass operating position of limiting valve.

2.0 TS

ENGINE OIL PUMP

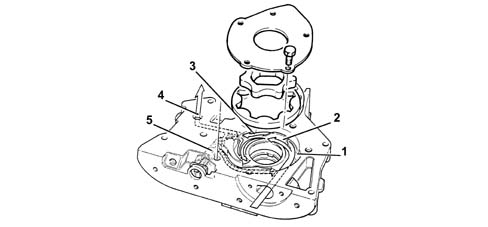

The engine oil is drawn in from the sump by means of the vacuum created by the rotation of the sprockets fitted on the crankshaft.

Vacuum is present between the sprocket separating wall (2) and the oil sump suction pipe.

Pressure instead develops after the separating wall (2) in all the oil delivery pipes (4).

When the pressure exceeds 5 bar, the force exerted on the limiting valve (5) overcomes the reaction of the spring below and moves the valve to open the connecting pipe between the pressure chamber (3) and the low pressure chamber (1).

1 - Low pressure chamber

2 - Separating wall

3 - Pressure chamber

4 - Oil delivery pipe

5 - Pressure relief valve

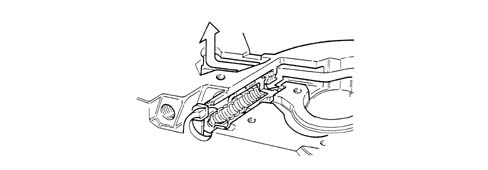

Closed operating position of oil pressure limiting valve.

Bypass operating position of limiting valve.

1.9 JTD 8V

COMPONENT DESCRIPTIONS

ENGINE OIL PUMP

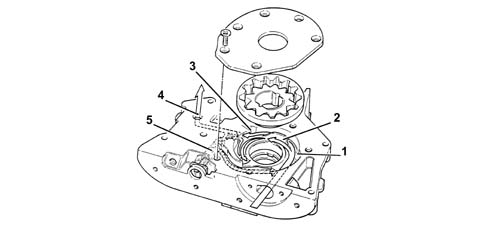

The engine oil is drawn in from the sump by means of the vacuum created by the rotation of the sprockets fitted on the crankshaft.

Vacuum is present between the sprocket separating wall (2) and the oil sump suction pipe.

Pressure instead develops after the separating wall (2) in all the oil delivery pipes (4).

When the pressure exceeds 5 bar, the force exerted on the limiting valve (5) overcomes the reaction of the spring below and moves the valve to open the connecting pipe between the pressure chamber (3) and the low pressure chamber (1).

1 - Low pressure chamber

2 - Separating wall

3 - Pressure chamber

4 - Oil delivery pipe

5 - Pressure relief valve

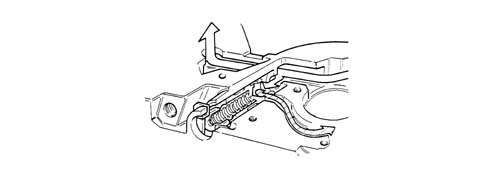

Closed operating position of oil pressure limiting valve.

Bypass operating position of limiting valve.

1.9 JTD 16V

COMPONENT DESCRIPTION

ENGINE OIL PUMP

The engine oil is drawn in from the sump by means of the vacuum created by the rotation of the sprockets fitted on the crankshaft.

Vacuum is present between the sprocket separating wall (2) and the oil sump suction pipe.

Pressure instead develops after the separating wall (2) in all the oil delivery pipes (4).

When the pressure exceeds 5 bar, the force exerted on the limiting valve (5) overcomes the reaction of the spring below and moves the valve to open the connecting pipe between the pressure chamber (3) and the low pressure chamber (1).

1 - Low pressure chamber

2 - Separating wall

3 - Pressure chamber

4 - Oil delivery pipe

5 - Pressure relief valve

Closed operating position of oil pressure limiting valve.

Bypass operating position of limiting valve.
