Wiring diagrams and electrical functions ABS - Wiring diagram
ABS - Wiring diagram

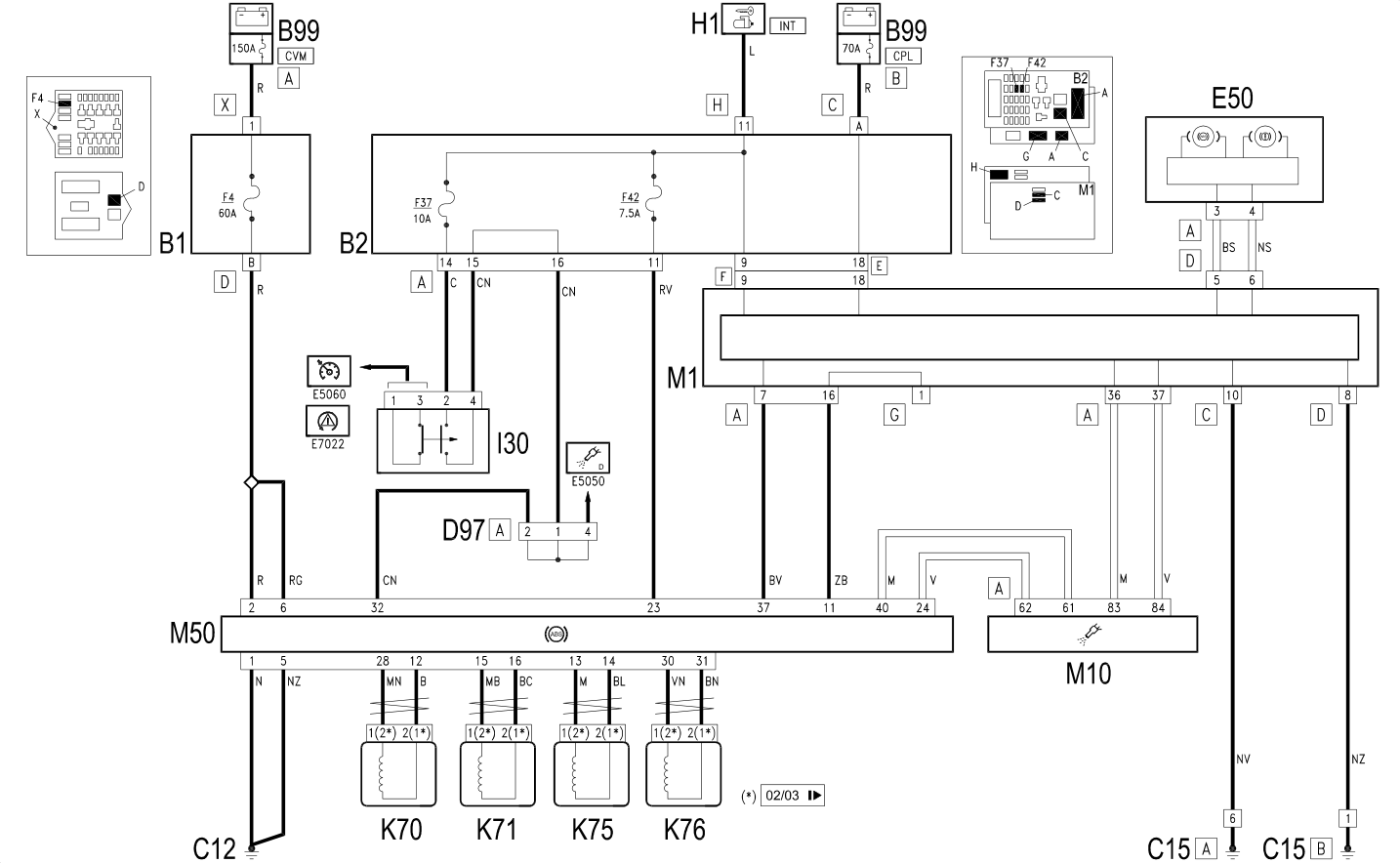

1.6 TS
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A

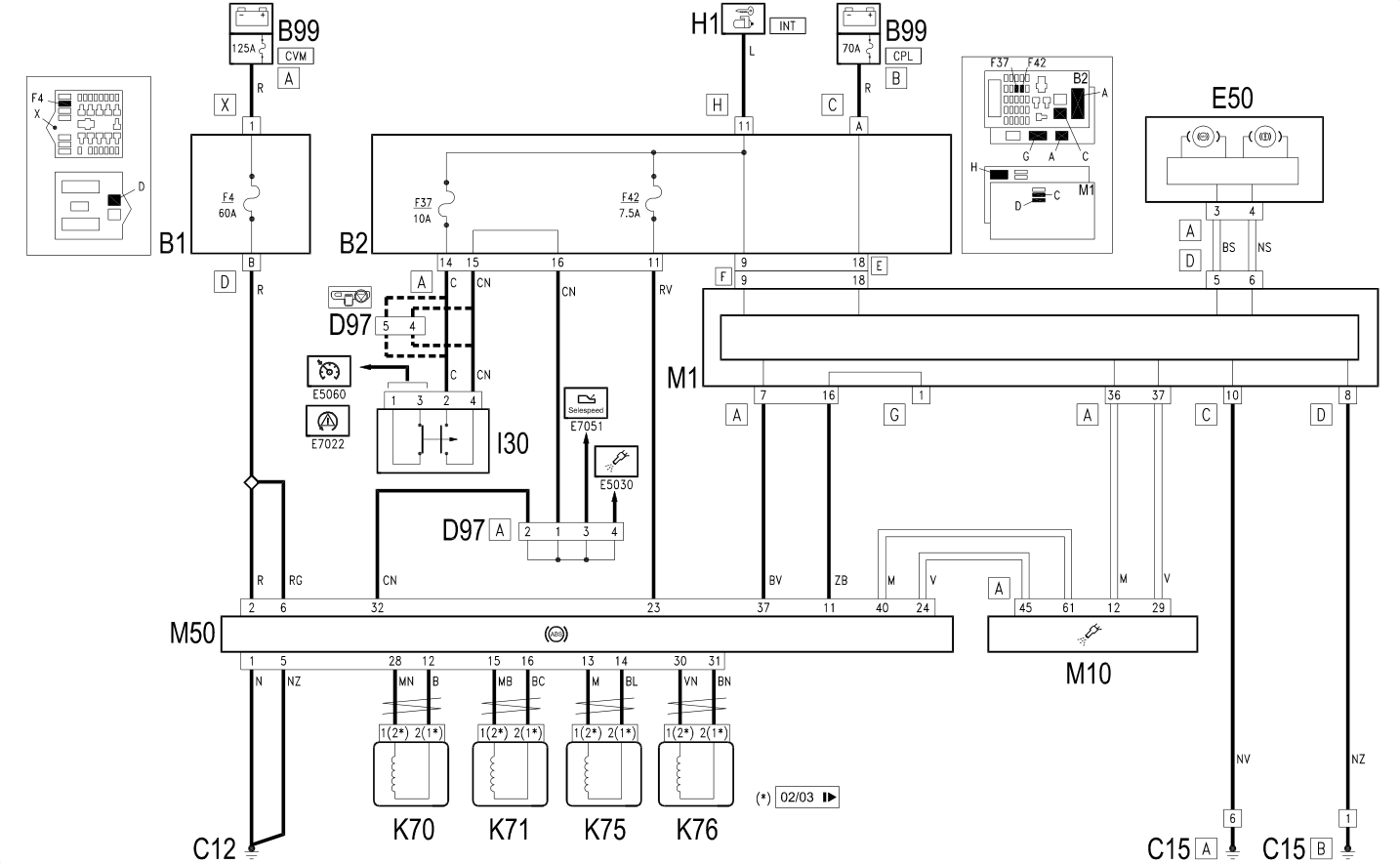

1.9 JTD 8V
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A
1.9 JTD 16V
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A
19 Electrical
