AIRBAG - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Vehicle electronic systems › AIRBAG - Wiring diagram
Wiring diagrams and electrical functionsAIRBAG - Wiring diagram
AIRBAG - Wiring diagram

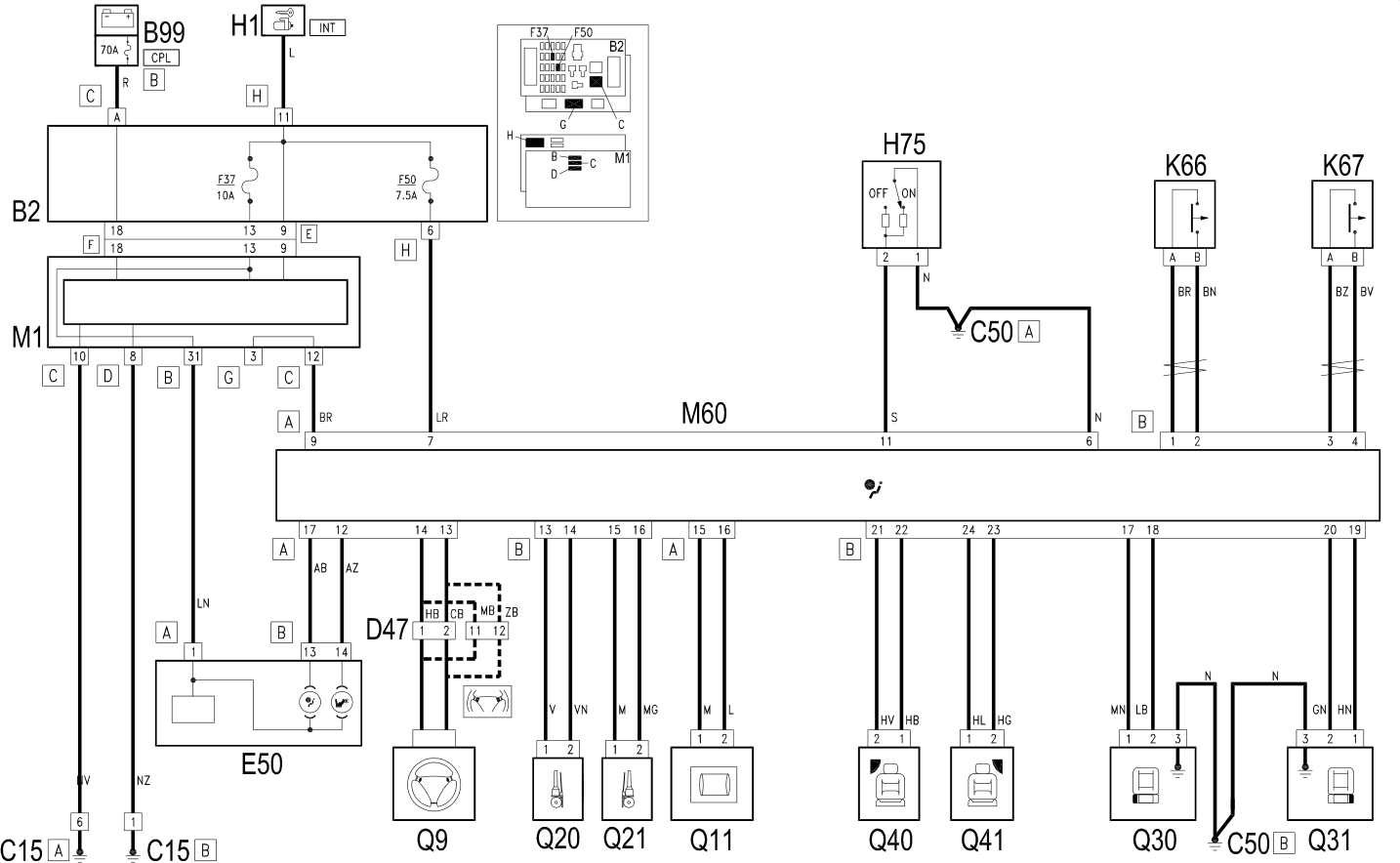

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| C50 | Air Bag earth | |
| D47 | Clock spring coupling | 5580C |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| H75 | Passenger's Air Bag disablement switch | 5580C |
| K66 | Sensor for driver's, Side Bag | |
| K66 | Sensor for driver's, Side Bag | 5580C |
| K67 | Sensor for passenger, Side Bag | |
| K67 | Sensor for passenger, Side Bag | 5580C |
| M1 | Body computer | 5505A |
| M60 | Air bag control unit | 5580C |
| Q9 | Driver's Air Bag | 5580C |
| Q11 | Air Bag in dashboard (passenger side) | 5580C |
| Q20 | Driver's seat belt pre-tensioner | 7065A |
| Q21 | Front passenger seat belt pretensioner | 7065A |
| Q30 | Driver's Side Bag | 5580C |
| Q31 | Passenger Side Bag | 5580C |
| Q40 | Driver's Head Bag | 5580C |
| Q41 | Passenger Head Bag | 5580C |

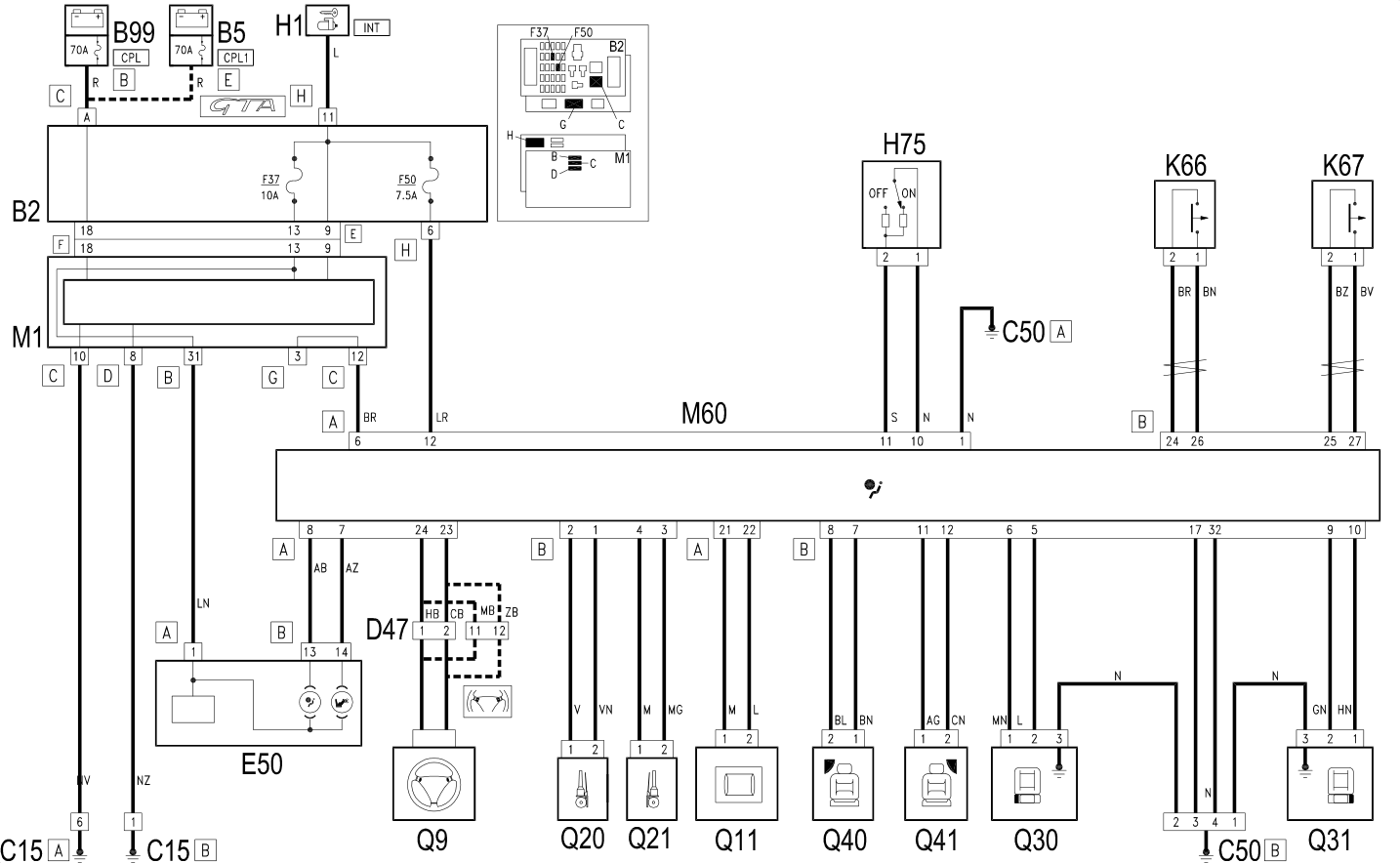

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| C50 | Air Bag earth | |
| D47 | Clock spring coupling | 5580C |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| H75 | Passenger's Air Bag disablement switch | 5580C |
| K66 | Sensor for driver's, Side Bag | |
| K66 | Sensor for driver's, Side Bag | 5580C |
| K67 | Sensor for passenger, Side Bag | |
| K67 | Sensor for passenger, Side Bag | 5580C |
| M1 | Body computer | 5505A |
| M60 | Air bag control unit | 5580C |
| Q9 | Driver's Air Bag | 5580C |
| Q11 | Air Bag in dashboard (passenger side) | 5580C |
| Q20 | Driver's seat belt pre-tensioner | 7065A |
| Q21 | Front passenger seat belt pretensioner | 7065A |
| Q30 | Driver's Side Bag | 5580C |
| Q31 | Passenger Side Bag | 5580C |
| Q40 | Driver's Head Bag | 5580C |
| Q41 | Passenger Head Bag | 5580C |
