Wiring diagrams and electrical functions VDC - Location of components
VDC - Location of components

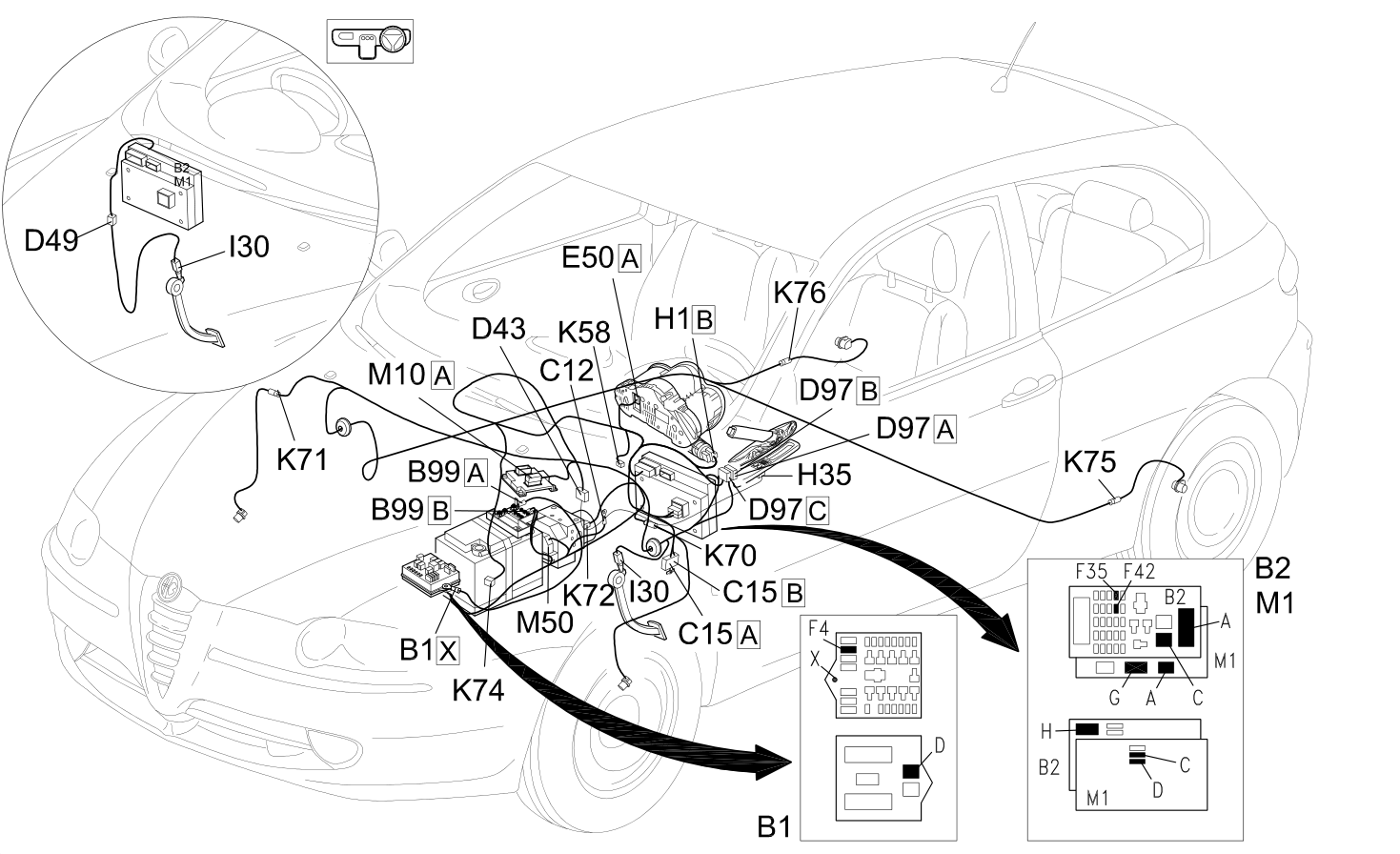

1.6 TS, 2.0 TS · up to 03/01
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D1 Front / dashboard coupling D43 Dashboard/centre console coupling D49 Pedal assembly join D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H35 Switches on tunnel 7040L I30 Brake pedal switch 5550D K58 Steering sensor 3350E K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K72 Pressure sensor (VDC) 3340A K74 Slewing sensor (VDC) 3350E K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A

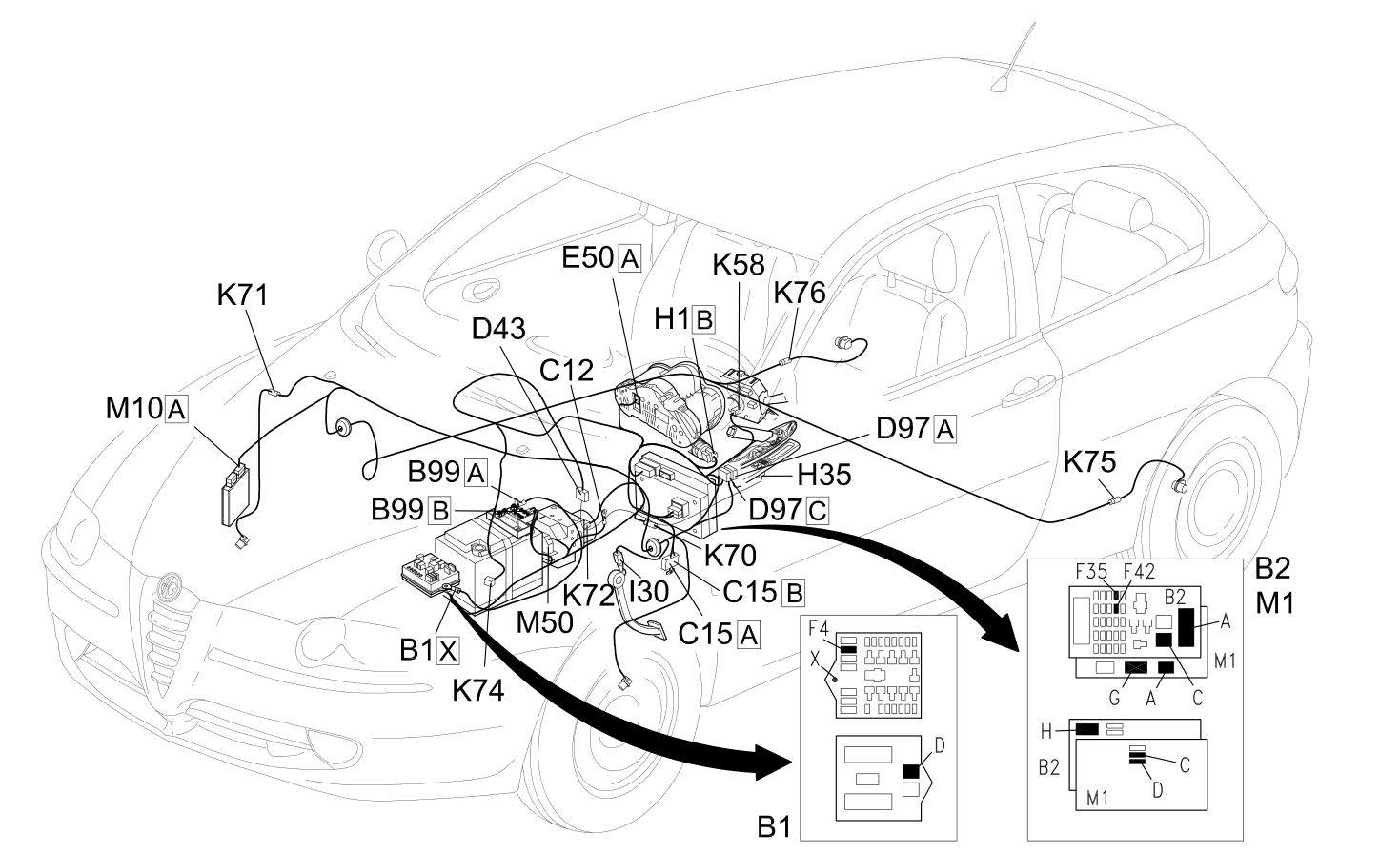

1.6 TS, 2.0 TS · 03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D1 Front / dashboard coupling D43 Dashboard/centre console coupling D49 Pedal assembly join D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H35 Switches on tunnel 7040L I30 Brake pedal switch 5550D K58 Steering sensor 3350E K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K72 Pressure sensor (VDC) 3340A K74 Slewing sensor (VDC) 3350E K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A

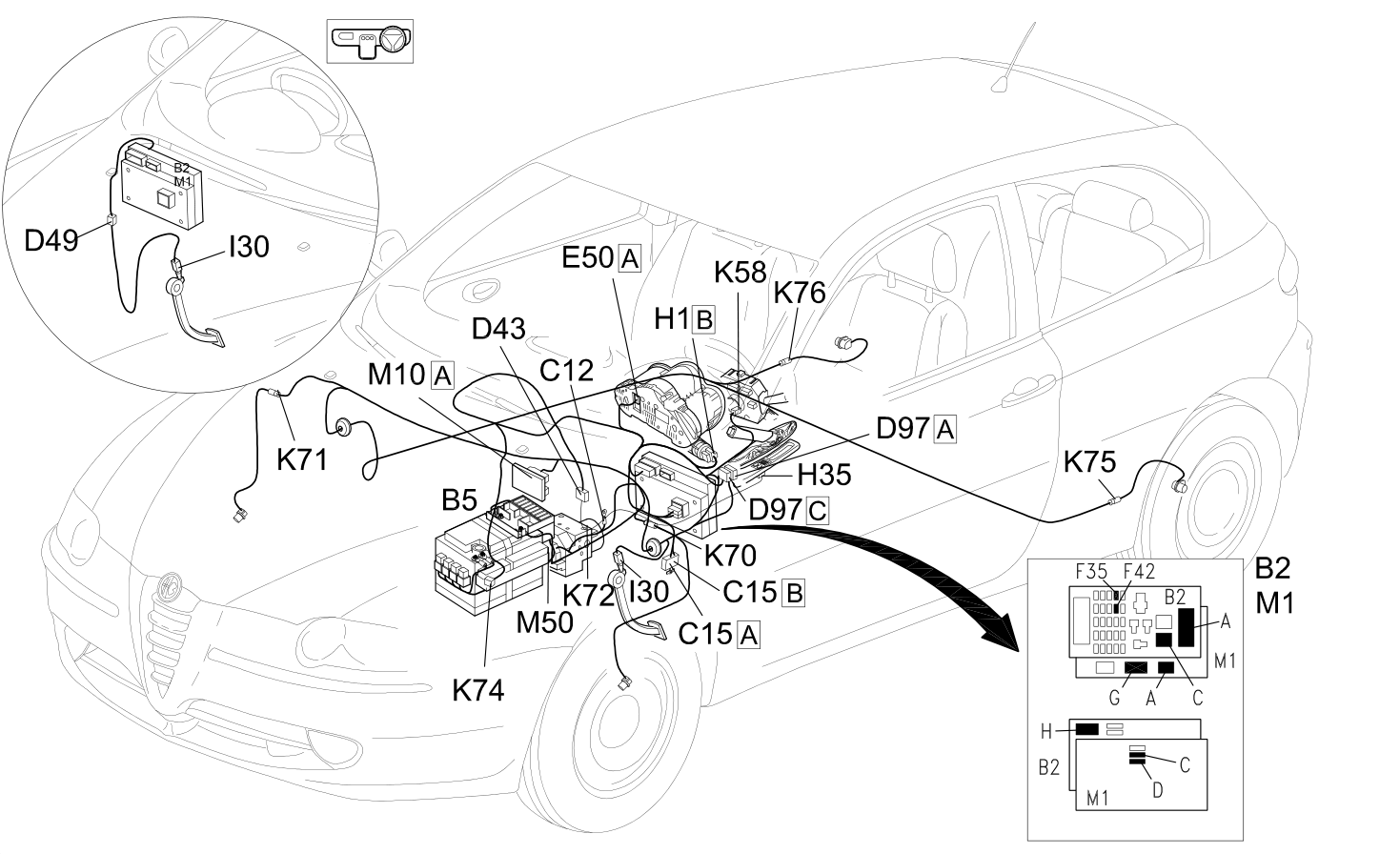

1.9 JTD 8V · up to 03/01
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D1 Front / dashboard coupling D43 Dashboard/centre console coupling D49 Pedal assembly join D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H35 Switches on tunnel 7040L I30 Brake pedal switch 5550D K58 Steering sensor 3350E K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K72 Pressure sensor (VDC) 3340A K74 Slewing sensor (VDC) 3350E K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A

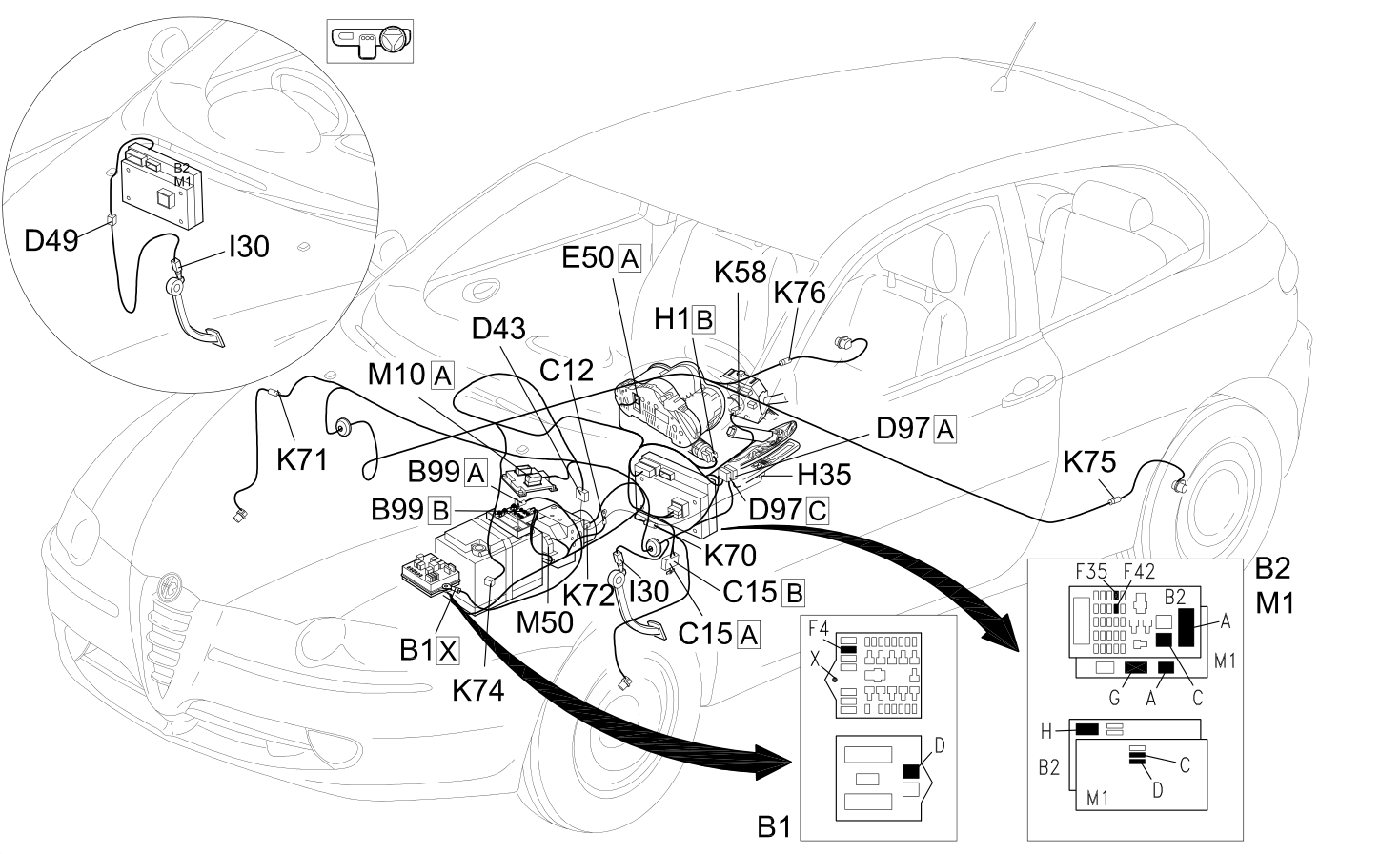

1.9 JTD 8V · 03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D1 Front / dashboard coupling D43 Dashboard/centre console coupling D49 Pedal assembly join D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H35 Switches on tunnel 7040L I30 Brake pedal switch 5550D K58 Steering sensor 3350E K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K72 Pressure sensor (VDC) 3340A K74 Slewing sensor (VDC) 3350E K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A

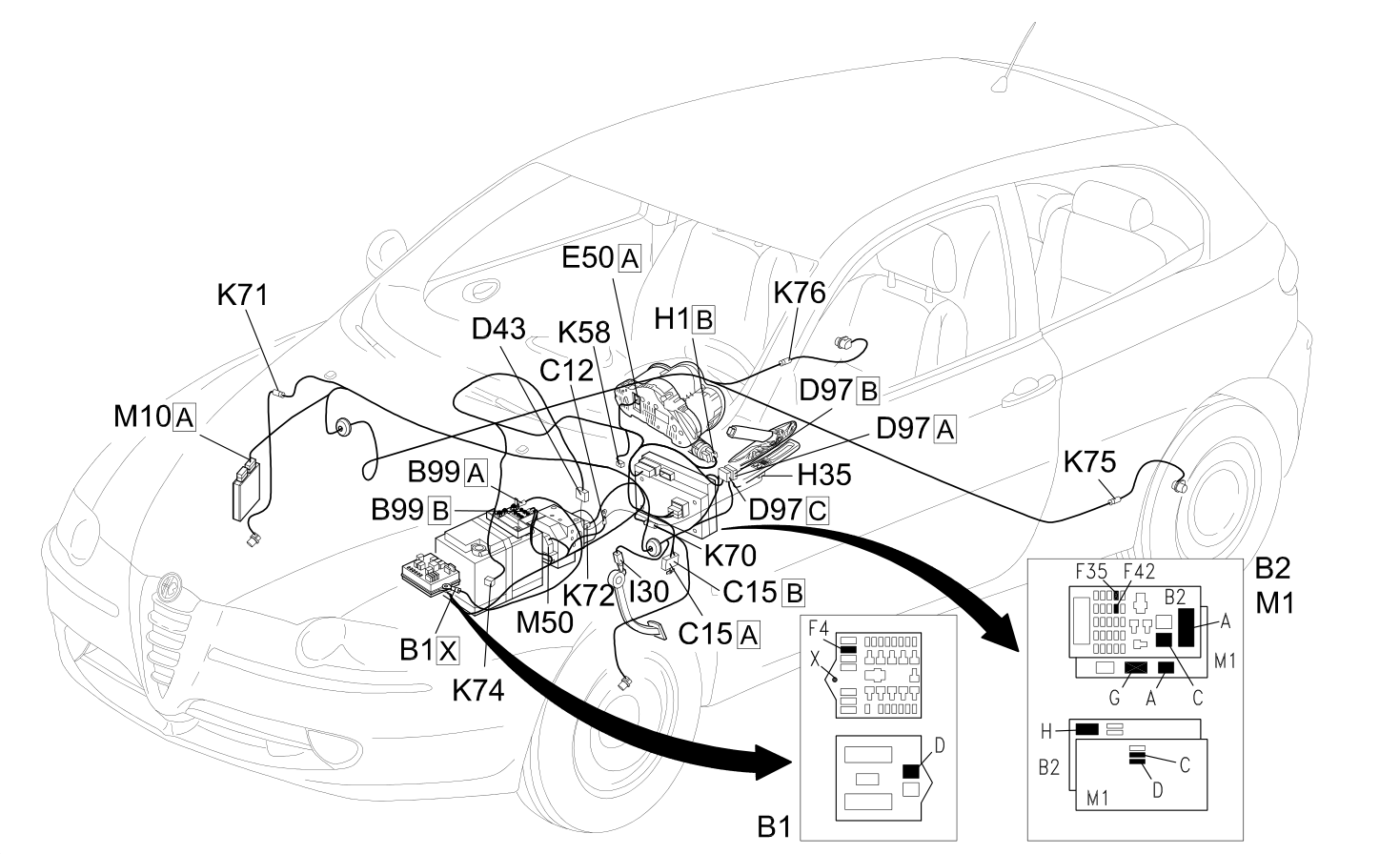

1.9 JTD 16V
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D1 Front / dashboard coupling D43 Dashboard/centre console coupling D49 Pedal assembly join D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H35 Switches on tunnel 7040L I30 Brake pedal switch 5550D K58 Steering sensor 3350E K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K72 Pressure sensor (VDC) 3340A K74 Slewing sensor (VDC) 3350E K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A
3.2 V6 · GTA
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C12 ABS front earth C15 Facia earth, driver's side D1 Front / dashboard coupling D43 Dashboard/centre console coupling D49 Pedal assembly join D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H35 Switches on tunnel 7040L I30 Brake pedal switch 5550D K58 Steering sensor 3350E K70 Left. front wheel sensor for ABS 3340A K71 Right. front wheel sensor for ABS 3340A K72 Pressure sensor (VDC) 3340A K74 Slewing sensor (VDC) 3350E K75 .Left rear wheel sensor for ABS 3340A K76 .Right rear wheel sensor for ABS 3340A M1 Body computer 5505A M10 Engine management ECU 1056B M10 Engine management ECU 1060G M50 ABS control unit 3340A
19 Electrical
