ROBOTIZED GEARBOX - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Vehicle electronic systems › ROBOTIZED GEARBOX - Wiring diagram
Wiring diagrams and electrical functionsROBOTIZED GEARBOX - Wiring diagram

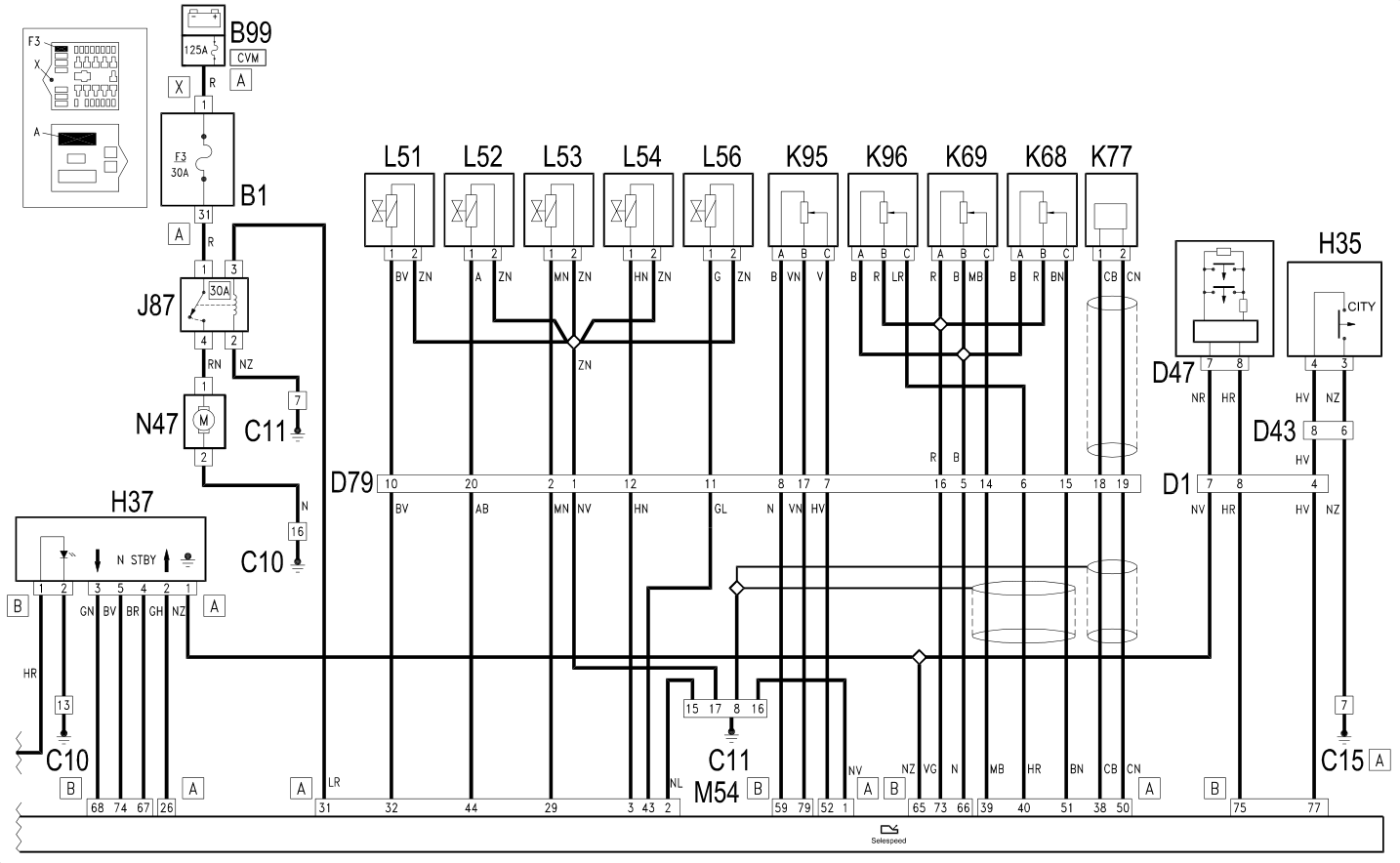

ROBOTIZED GEARBOX - Wiring diagram
Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C11 | Right front earth | |
| C15 | Facia earth, driver's side | |
| D1 | Front / dashboard coupling | |
| D6 | Front / rear coupling | |
| D43 | Dashboard/centre console coupling | |
| D47 | Clock spring coupling | 5580C |
| D49 | Pedal assembly join | |
| D79 | "Selespeed gearbox sensors coupling" | |
| D97 | Short circuiting coupling | |
| E47 | "Selespeed gearbox buzzer" | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| H35 | Switches on tunnel | 7040L |
| H37 | Gear controls | 2127A |
| I30 | Brake pedal switch | 5550D |
| J87 | "Selespeed gearbox relay" | |
| K58 | Steering sensor | 3350E |
| K68 | Speed selection potentiometer | 2127E |
| K69 | Gear shift potentiometer | 2127E |
| K77 | Transmission input speed sensor | 2127E |
| K95 | Clutch position potentiometer | 2127E |
| K96 | Pressure sensor on transmission | 2127E |
| L51 | Solenoid 1 (gear engagement) | 2127C |
| L52 | Solenoid 2 (gear engagement) | 2127C |
| L53 | Solenoid 3 (gear engagement) | 2127C |
| L54 | Solenoid 4 (gear engagement) | 2127C |
| L56 | Clutch control solenoid | 2127C |
| M1 | Body computer | 5505A |
| M10 | Engine management ECU | 1056B |
| M54 | "Selespeed transmission control unit" | 2127E |
| N47 | "Selespeed gearbox electric pump" | 2127C |

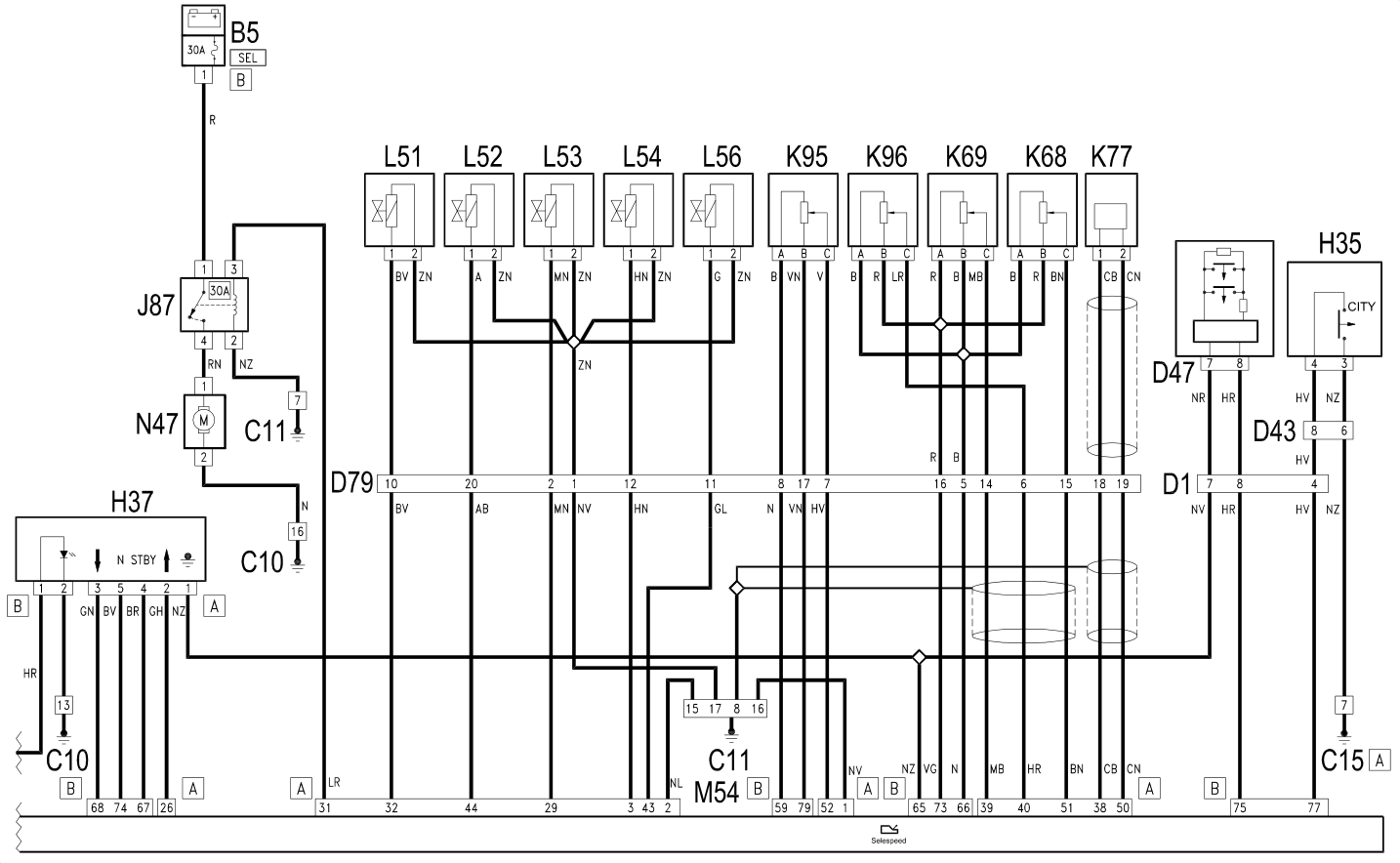

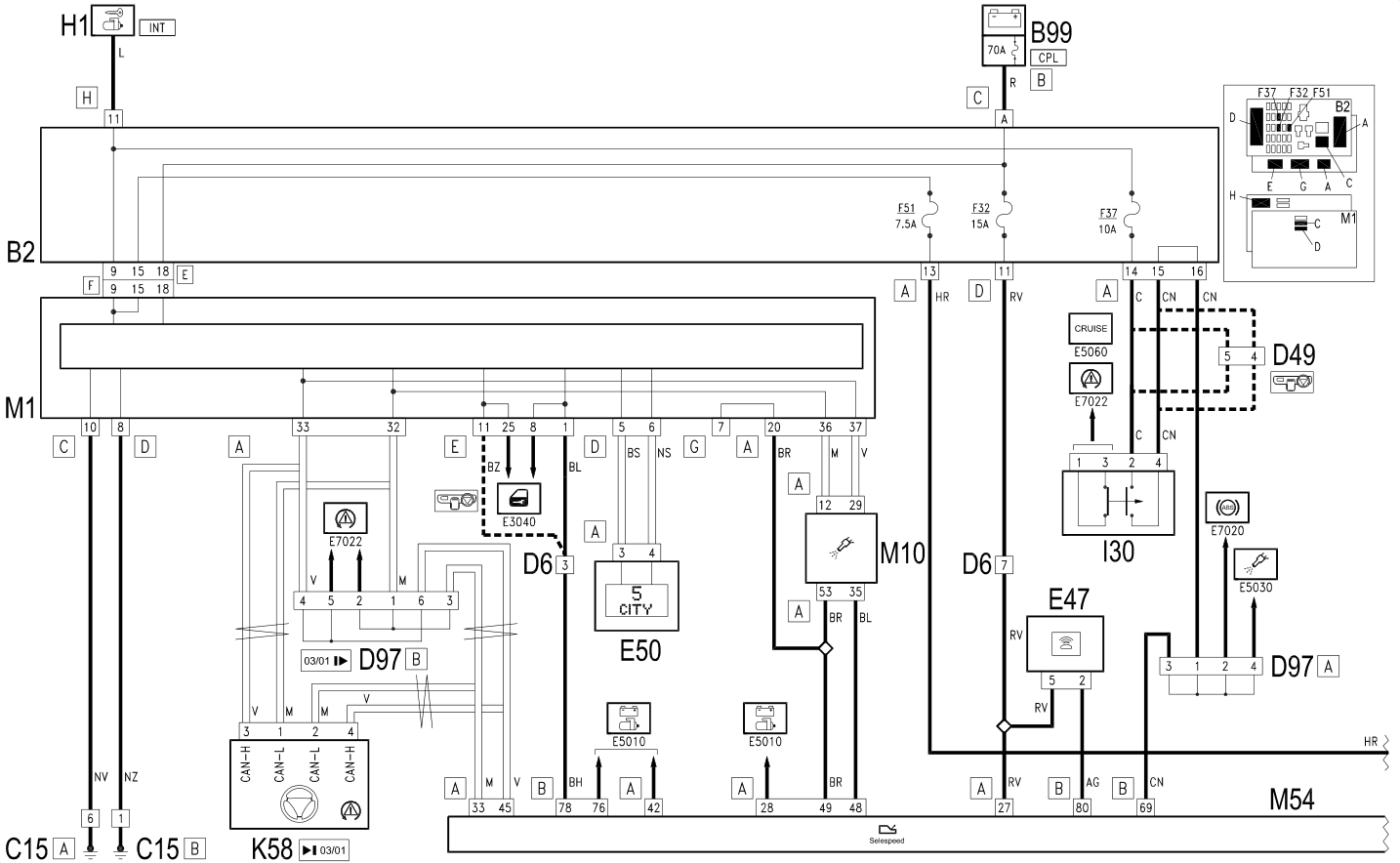

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C11 | Right front earth | |
| C15 | Facia earth, driver's side | |
| D1 | Front / dashboard coupling | |
| D6 | Front / rear coupling | |
| D43 | Dashboard/centre console coupling | |
| D47 | Clock spring coupling | 5580C |
| D49 | Pedal assembly join | |
| D79 | "Selespeed gearbox sensors coupling" | |
| D97 | Short circuiting coupling | |
| E47 | "Selespeed gearbox buzzer" | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| H35 | Switches on tunnel | 7040L |
| H37 | Gear controls | 2127A |
| I30 | Brake pedal switch | 5550D |
| J87 | "Selespeed gearbox relay" | |
| K58 | Steering sensor | 3350E |
| K68 | Speed selection potentiometer | 2127E |
| K69 | Gear shift potentiometer | 2127E |
| K77 | Transmission input speed sensor | 2127E |
| K95 | Clutch position potentiometer | 2127E |
| K96 | Pressure sensor on transmission | 2127E |
| L51 | Solenoid 1 (gear engagement) | 2127C |
| L52 | Solenoid 2 (gear engagement) | 2127C |
| L53 | Solenoid 3 (gear engagement) | 2127C |
| L54 | Solenoid 4 (gear engagement) | 2127C |
| L56 | Clutch control solenoid | 2127C |
| M1 | Body computer | 5505A |
| M10 | Engine management ECU | 1056B |
| M54 | "Selespeed transmission control unit" | 2127E |
| N47 | "Selespeed gearbox electric pump" | 2127C |
