Alfa Romeo GT Factory Service Manual (2003-2010)08 · Engine
08 · Engine

Cam angle SENSOR - R.R.

Make
Alfa Romeo
Model
GT Factory Service Manual
Year
2003–2010
Section
Petrol injection system › Cam angle SENSOR - R.R.
EngineCam angle SENSOR - R.R.

Cam angle SENSOR - R.R.

Operation 1056F51 · DIRECT PETROL INJECTION SYSTEM

2.0 JTS

Removing

Position the vehicle on the ramp

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

NameConnector
BatteryA1B

Proceed with removal - 4450B04 right front wheel r r

Proceed with removal - 7055B54 under-engine guard - r r

Proceed with removal - 1016A40 ignition coil cover on cylinder head- r+r

Proceed with removal - 1032B10 toothed timing belt - r + r for timing adjustment or replacement

Proceed with removal - 1032B52 toothed driven pulley (one) - r + r (Left side).

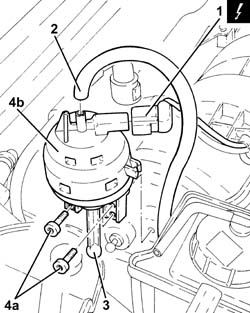

1. Disconnect the electrical connection from the enablement solenoid of the changeover device actuator.

NameConnector
1Variable geometry control solenoidL15

2. Disconnect the vacuum intake pipe from the air flow switching device actuator and release it from the fastening.

3. Disconnect the linkage for the air flow switching control actuator.

4. Undo the bolts (4a) and remove the air flow switching control actuator (4b).

Cam angle SENSOR - R.R.

1. Release the fuel vapour recovery pipe (1a) and the coolant return pipe to the coolant reservoir (1b) from the attachments on the power steering fluid reservoir.

2. Undo the bolts (2a) and move aside the power steering fluid reservoir (2b).

Cam angle SENSOR - R.R.

1. Undo the bolts (1a) and remove the bracket (1b) after releasing the electrical wiring from the cam angle sensor.

Cam angle SENSOR - R.R.

1. Disconnect the electrical connection for the cam angle sensor and release the wiring from the fastening on the modular intake manifold.

NameConnector
1Timing sensor.K47
Cam angle SENSOR - R.R.

Disconnect the lower coolant outlet hose from the radiator and drain the engine coolant.

Manually press the springs and remove the rapid attachment for the hose.

Recover the coolant using a suitable container.

1. Undo the bolts (1a) and remove the water pump (1b) complete with O-ring.

2. Undo bolts (2a) and remove the timing sensor (2b).

Cam angle SENSOR - R.R.

Refitting

1. Place the timing sensor (1a) in its seating and secure it with its bolts (1b) to the specified torque.

FasteningComponentØ

Value

(daNm)

1bBoltCAMSHAFT.MPI. ( CAM ANGLE SENSOR)M6(Cylinder head side) 0.8 ÷ 1.0

2. Refit the water pump (2a), complete with O-ring, back in its housing and tighten the bolts (2b) to the specified torque.

FasteningComponentØ

Value

(daNm)

2bBoltCOOLANT PUMPM8(Cylinder head side) 2.3 ÷ 2.8
Cam angle SENSOR - R.R.

Connect the electrical connection for the cam angle sensor and fix the electrical wiring to the fastening on the modular intake manifold.

Refit the bracket in its seating and secure it using the bolts, then secure the cam angle sensor's wiring to its band.

Refit in its seating the power steering fluid reservoir and secure it with its bolts.

Fasten the fuel vapour recovery pipe and the coolant return pipe to the engine coolant supply reservoir to the fastenings on the power assisted steering fluid reservoir.

Fit the air flow switching device actuator in its seating and secure it using the bolts.

Connect the linkage for the air flow switching control actuator.

Connect the air flow switching control actuator vacuum intake pipe and fasten it to the device with a band.

Connect the electrical connection from the enablement solenoid of the changeover device actuator.

Proceed with refitting - 1032B52 toothed driven pulley (one) - r + r (Exhaust side).

Proceed with refitting - 1032B10 toothed timing belt - r + r for timing adjustment or replacement.

Proceed with refitting - 1016A40 ignition coil cover on cylinder head- r+r.

Proceed with refitting - 7055B54 under-engine guard - r r.

Proceed with refitting - 4450B04 right front wheel r r.

Connect the negative (-) battery terminal

Refill the engine cooling system with coolant - 0010T20 coolant change.

Remove the car from the ramps.
