DISC BRAKES

Description 3310

1.2 8v, 1.3 Multijet, 1.4 16v

Introduction

This vehicle is fitted with front brake discs:

• full (1.2 8V petrol engine)
• self-ventilating (1.3 Multijet and 1.4 16V petrol engines).

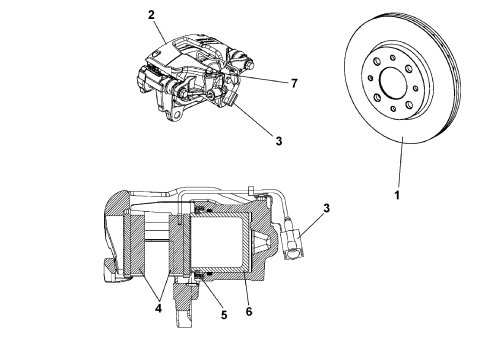

1. Self-ventilating disc

2. Brake calliper

3. Brake pad wear sensor connector

4. Front brake pads

5. Sealing gasket

6. Cylinder

7. Brake calliper bleed screw
