HANDBRAKE CONTROL CABLE (ONE), LEFT OR RIGHT - R.R.

Operation 3380A35 · HANDBRAKE CONTROL AND LINKAGE

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Position the vehicle on a lift.

- Remove the rear wheel corresponding to the handbrake cable to be removed.

Op. 4450B06 LEFT REAR WHEEL - R.R

- or

Op. 4450B08 RIGHT REAR WHEEL - R.R

- Carry out the operations detailed below for both handbrake cables.

Op. 7040L22 REAR COVER ON TUNNEL - R.R.

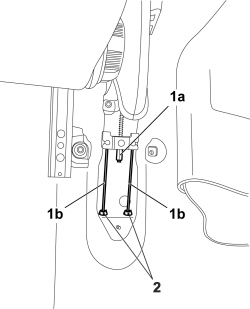

1. Unscrew adjustment nut (1a) and loosen handbrake cables (1b).

2. Remove the retaining clips from their housing

1. Release the handbrake cable from the housing on the shoe carrier disc.

- Remove the handbrake cable, releasing it from the retaining mounts.

1.2 8v, 1.3 Multijet

Refitting

- Check that the handbrake cable is not damaged. If it is, replace it.

- Fit the handbrake cable in place and secure it to the associated retaining mounts.

- Fit the handbrake cable into place on the shoe carrier disc.

- Connect the cable to the handbrake and secure it with the retaining clip.

- Adjust the handbrake cables using the associated adjustment nut.

Op. 7040L22 REAR COVER ON TUNNEL - R.R.

- Refit the rear wheel corresponding to the handbrake cable that was removed.

Op. 4450B06 LEFT REAR WHEEL - R.R

- or

Op. 4450B08 RIGHT REAR WHEEL - R.R

- Remove the vehicle from the lift.
