TIMING COVER OIL SEAL - REPLACE

Operation 1020B30 · TIMING SYSTEM OIL SEAL COVERS

1.3 Multijet

Removing

- Position the vehicle on a lift.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

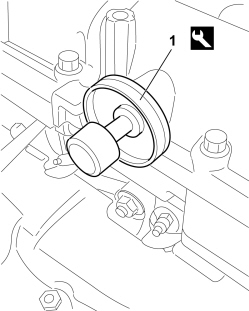

1. Remove the plug and insert the template on the exhaust side camshaft in its place.

Fit the tool and position with its millings horizontal. Ensure it fits into the seat on the camshaft.

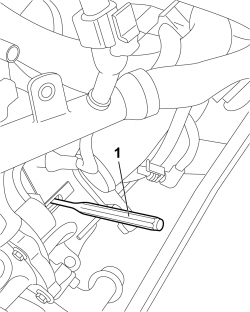

1. Fit a drift with a suitable size diameter in the opening in the gearbox.

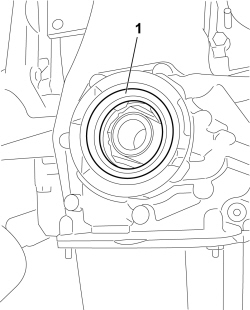

1. Remove the timing cover oil seal.

Take care not to damage the oil seal seat when removing it.

Refitting

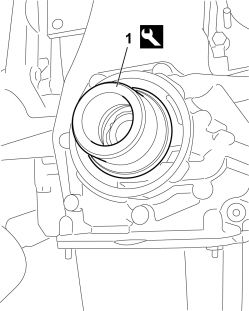

1. Fit a new oil seal on the timing cover using the fitting tool.

- Remove the template and fit the plug in the exhaust side camshaft in its place.

- Remove the drift from the opening in the gearbox.

Op. 1092A12 CRANKSHAFT PULLEY - R+R FOR VERSIONS WITH AIR CONDITIONING

Op. 1092G11 ENGINE COMPONENTS SINGLE DRIVE BELT - R.R. FOR VERSIONS WITH AIR CONDITIONING

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

- Remove the vehicle from the lift.
