ENGINE MARKING

1.2 8v, 1.3 Multijet, 1.4 16v

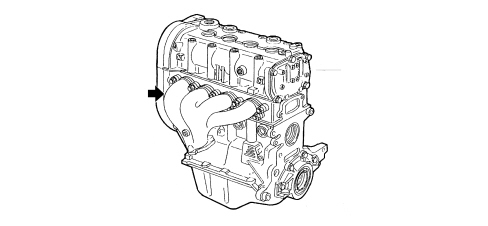

1.2 8v engine

The engine marking is stamped on the cylinder block/crankcase, timing side, near the exhaust manifold mounting.

1.4 16v Engine

The engine marking is stamped on the cylinder block/crankcase, timing side, near the exhaust manifold mounting.

1.3 Multijet Engine

The engine marking is stamped on the crankcase, gearbox side.

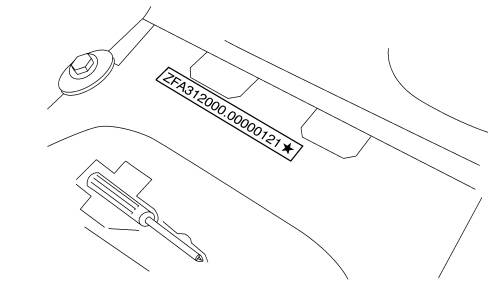

It is applied to the right side of the floor at the rear of the luggage compartment and shows the following data.

• type of vehicle
• vehicle frame progressive manufacturing number.
