EQUIPMENT FITTED AS STANDARD/AVAILABLE ON REQUEST
RIMS AND TYRES
Pressed steel or alloy wheels.
Radial type tubeless tyres. The logbook also contains all homologated tyres.
For safe driving it is vital for the vehicle to have tyres of the same make and type on all wheels.
Do not use air chambers with tubeless tyres.
SPARE WHEEL
Pressed steel wheel. Tubeless tyre.
CORRECT READING OF THE TYRE
| Example: 175/65 R 14 82H | |
|---|---|
| 175 | Nominal width (distance in mm between sides). |
| 65 | Height/width ratio as a percentage. |
| R | Radial tyre. |
| 14 | Diameter of rim in inches. |
| 82 | Load index. |
| H | Maximum speed index. |

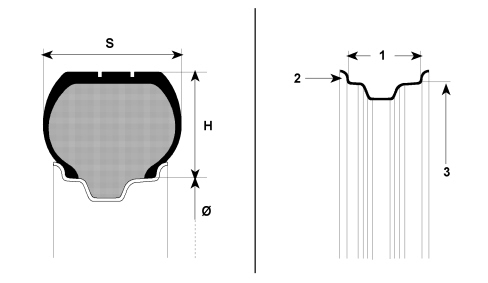

- S. Nominal width
- H. Nominal height
- Ø. Diameter of the rim
- 1 Width of the rim
- 2 Profile
- 3 Fitting diameter
| Maximum speed index | |
|---|---|
| Q | up to 160 km/h. |
| R | up to 170 km/h. |
| S | up to 180 km/h. |
| T | up to 190 km/h. |
| U | up to 200 km/h. |
| H | up to 210 km/h. |
| V | up to 240 km/h. |
| Maximum speed index for snow tyres | |
|---|---|
| QM + S | up to 160 km/h. |
| TM + S | up to 190 km/h. |
| HM + S | up to 210 km/h. |
CORRECT READING OF THE WHEEL RIM
| Example: 5.00 B x 14 H2 | |
|---|---|
| 5,00 | width of rim in inches. |
| B | profile of the balcony (side projection where the tyre heel rests). |
| 14 | fitting diameter, expressed in inches (corresponds to the diameter of the tyre that should be fitted) |
| 3 | dia |
| H2 | shape and number of humps (circumference measurement which keeps the heel of tubeless tyres in position on the rim). |
| Versions | Rims | Original tyres | Spare wheel (where present) | Spare wheel (where present) |
|---|---|---|---|---|
| 1.2 petrol | 5 ½ Jx14H2-ET35(A) 5 ½ Jx14H2-ET35 6 Jx15H2-ET35 (B) 6 ½ Jx16H2-ET35 (B) | 165/65 R14 79 T (A) 175/65 R14 82 T 185/55 R15 82 T (C) 195/45 R16 84 T (C) | 4J R14-ET43 4J R14-ET43 | 135/80 R14 84P 135/80 B14 84M |
| 1.3 Multijet | 5 ½ Jx14H2-ET35 6 Jx15H2-ET35 (B) 6 Jx15H2-ET40 6 ½ Jx16H2-ET35 (B) | 175/65 R14 82 H 185/55 R15 82 H (C) 185/55 R15 82 H (C) 195/45 R16 84 H (C) | 4J R14-ET43 4J R14-ET43 | 135/80 R14 84P 135/80 B14 84M |
| 1.4 petrol | 5 ½ Jx14H2-ET35 6 Jx15H2-ET35 (B) 6 ½ Jx16H2-ET35 (B) | 175/65 R14 82 T 185/55 R15 82 T (C) 195/45 R16 84 T (C) | 4J R14-ET43 4J R14-ET43 | 135/80 R14 84P 135/80 B14 84M |
(A) Only available on versions without electric steering
(B) Alloy wheel
(C) Tyres to which chains cannot be fitted
