CLUTCH HYDRAULIC CIRCUIT VIBRATION DAMPER - R+R

Operation 1820B58 · HYDRAULIC CLUTCH SYSTEM

1.4 16v

Proceed as described below for left-hand drive version

1.9 JTD 8v, 1.9 JTD 16v

Removing

Op. 1016A10 SOUND-PROOFING COVER - R.R

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 4450B02 LEFT FRONT WHEEL - R.R

Op. 7055B65 ENGINE COMPARTMENT DUST COVER IN LEFT FRONT WHEEL ARCH - R.R.

Op. 1820B55 FLEXIBLE PIPE WITH OPERATING CYLINDER VIBRATION DAMPER - R.R.

Refitting

Op. 1820B55 FLEXIBLE PIPE WITH OPERATING CYLINDER VIBRATION DAMPER - R.R.

Op. 7055B65 ENGINE COMPARTMENT DUST COVER IN LEFT FRONT WHEEL ARCH - R.R.

Op. 4450B02 LEFT FRONT WHEEL - R.R

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 1016A10 SOUND-PROOFING COVER - R.R

Op. 0010T64 BRAKE AND/OR CLUTCH FLUID CHECK LEVEL AND TOP UP AS NECESSARY

Op. 0010T67 HYDRAULIC CLUTCH SYSTEM - BLEED AIR

1.4 16v TJet

Removing

- Unscrew the brake fluid reservoir cap and fit the tool.

1. Retract the clip and disconnect the oil supply pipe to the operating cylinder from the three-way connector.

- Open the intermediate pipe retaining clip from the vibration damper to the operating cylinder.

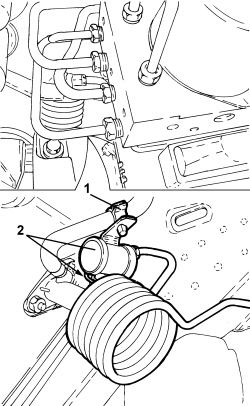

1. Open the pipe retaining clip from the reservoir to the clutch pump.

2. Lift up the clip, disconnect the vibration damper complete with supply pipe to the operating cylinder and remove it.

1. Undo the connector (1a) and separate the vibration damper (1b) for the operating cylinder supply pipe (1c).

- Remove the O-ring.

Refitting

- Fit a new O-ring on the vibration damper connector, clutch pump side.

- Connect the operating cylinder supply pipe to the vibration damper and tighten the connector.

- Place the vibration damper and operating cylinder supply pipe assembly in position.

- Connect the vibration damper to the clutch pump and attach the retaining clip.

- Close the pipe retaining clip from the reservoir to the clutch pump.

- Connect the fluid pipe to the operating cylinder, three-way connector side and secure it using the retaining clip.

- Close the intermediate pipe retaining clip from the vibration damper to the operating cylinder.

Op. 0010T67 HYDRAULIC CLUTCH SYSTEM - BLEED AIR

1.4 16v

Removing

For right hand drive versions

- Position the vehicle on a lift.

- Connect a suitable container to the clutch actuator bleed valve and drain all the brake-clutch fluid.

Op. 4450B02 LEFT FRONT WHEEL - R.R

Op. 7055B65 ENGINE COMPARTMENT DUST COVER IN LEFT FRONT WHEEL ARCH - R.R.

1. Undo the inlet and outlet pipe connectors from the vibration damper.

2. Undo the nuts and remove the vibration damper.

Refitting

- Place the vibration damper in position and tighten the nuts.

- Tighten the inlet and outlet pipe connectors to the vibration damper.

Op. 7055B65 ENGINE COMPARTMENT DUST COVER IN LEFT FRONT WHEEL ARCH - R.R.

Op. 4450B02 LEFT FRONT WHEEL - R.R

Op. 0010T64 BRAKE AND/OR CLUTCH FLUID CHECK LEVEL AND TOP UP AS NECESSARY

Op. 0010T65 HYDRAULIC BRAKE SYSTEM - BLEED AIR

Op. 0010T67 HYDRAULIC CLUTCH SYSTEM - BLEED AIR

- Remove the vehicle from the lift.
