ENGINE OIL PRESSURE WARNING LIGHT SWITCH - R + R

Operation 1084A42 · INDICATORS/CHECK DEVICES

1.9 JTD 8v, 1.9 JTD 16v

Removing

- Remove the vehicle from the lift.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

Op. 1008C30 POWER UNIT LOWER REACTION LINK - R.R.

Op. 1008C33 BRACKET ON ENGINE FOR LOWER REACTION ROD - R.R.

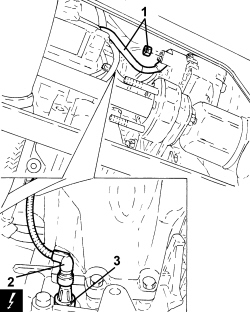

1. Undo the nut and remove the supply lead from the alternator.

2. Disconnect the electrical connection for the engine oil pressure warning light switch.

3. Undo and remove the engine oil pressure warning light switch.

Refitting

- Replace the engine oil pressure warning light switch in its housing and tighten it to the recommended torque.

- Connect the electrical connection for the engine oil pressure warning light switch.

- Connect the supply lead to the alternator and tighten the nut.

Op. 1008C33 BRACKET ON ENGINE FOR LOWER REACTION ROD - R.R.

Op. 1008C30 POWER UNIT LOWER REACTION LINK - R.R.

Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.

1.4 16v

Removing

1. Disconnect electrical connection (1a), unscrew and remove the engine oil pressure warning light switch (1b).

Refitting

- Replace the engine oil pressure warning light switch in its housing and tighten it to the recommended torque.

- Connect the electrical connection for the engine oil pressure warning light switch.

1.4 16v TJet

Removing

- Position a suitable container to collect the engine oil that will come out of the engine oil pressure warning light switch housing.

1. Disconnect electrical connection (1a), unscrew and remove the engine oil pressure warning light switch (1b).

Refitting

- Replace the engine oil pressure warning light switch in its housing and tighten it to the recommended torque.

- Connect the electrical connection for the engine oil pressure warning light switch.
