ENGINE OIL PUMP, REMOVED - CHECK AT BENCH
Removing
1. Undo the bolts (1a) and remove the intake (1b).
2. Remove the seal.
3. Undo the bolts (3a) and remove the oil pump cover (3b).
4. Remove the driven gear.
5. Remove the drive gear.
6. Undo the cap (6a) and release the oil pressure relief valve (6b).
- Remove the crankshaft front oil seal
Refitting
1. Check that the radial clearance between the driven gear and the pump casing is within the recommended limits.
| Measurement | Value | Validity |
|---|---|---|
| Radial clearance between driven gear and pump casing (mm) | 0.100 ÷ 0.210 | 1.4 16v |
1. Check that the endfloat between the top of the gears and the oil pump cover support plane is within the recommended values.
| Measurement | Value | Validity |
|---|---|---|
| Endfloat between the pump casing support plane and the top of the gears (mm) | 0.025 ÷ 0.070 |
- Check that the height of the pressure relief valve spring is within the recommended values.
| Measurement | Value | Validity |
|---|---|---|
| Height of engine oil pressure limit valve spring under load of 11.73 - 12.51 daN (mm) | 35.0 | 1.4 16v |
- Place the oil pressure relief valve in position and secure it using the cap.
- Place the drive gear and the driven gear in position.
- Place the oil pump cover in position and secure it by tightening the bolts to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| ENGINE OIL PUMP COVER | Bolt | M6 | 0.7 | 1.4 16v |
Manually rotate the gears to check that they do not stick.
- Position the intake duct complete with gasket in its housing and secure it using the bolts.
Removing

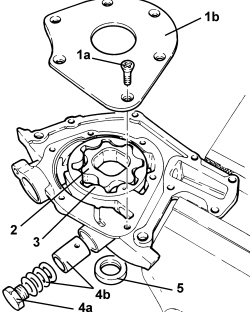

1. Undo the bolts (1a) and remove the oil pump cover (1b).
2. Remove the drive gear.
3. Remove the driven gear.
4. Undo the cap (4a) and remove the oil pressure relief valve (4b).
5. Remove the crankshaft front oil seal.
Refitting
- Check that the radial clearance between the driven gear and the pump casing is within the recommended limits; if this is not the case, replace the oil pump assembly.
| Measurement | Value | Validity |
|---|---|---|
| Radial clearance between driven gear and pump casing (mm) | 0.080 ÷ 0.186 | 1.9 JTD |
- Check that the axial clearance between the pump cover support plane and the top of the gears is within the recommended values; if this is not the case, replace the oil pump assembly.
| Measurement | Value | Validity |
|---|---|---|
| Endfloat between the pump casing support plane and the top of the gears (mm) | 0.025 ÷ 0.070 |
Check that the height of the oil pressure relief valve spring is within the recommended values; if not, replace the spring.
| Measurement | Value | Validity |
|---|---|---|
| Height of engine oil pressure limit valve free spring (mm) | 49.8 | 1.9 JTD |
| Measurement | Value | Validity |
|---|---|---|
| Height of engine oil pressure limit valve spring under load of 8.78 - 9.66 daN (mm) | 36.0 | 1.9 JTD |
- Place the oil pressure relief valve in position and tighten the cap to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Engine oil pressure relief valve | Plug | 1.6 ÷ 2.0 | 1.9 JTD |
- Place the driven gear in position.
- Place the drive gear in position.
- Fit the oil pump cover in its housing and tighten the bolts.
Manually rotate the gears to check that they turn without sticking.
Removing
1. Undo the bolts (1a) and remove the oil pump cover (1b).
2. Remove the drive gear.
3. Remove the driven gear.
4. Undo the cap (4a) and remove the oil pressure relief valve (4b).
- Remove the crankshaft front oil seal
Refitting
- Check that the radial clearance between the driven gear and the pump casing is within the recommended limits; if this is not the case, replace the oil pump assembly.
| Measurement | Value | Validity |
|---|---|---|
| Radial clearance between driven gear and pump casing (mm) | 0.080 ÷ 0.186 | 1.9 JTD |
- Check that the axial clearance between the pump cover support plane and the top of the gears is within the recommended values; if this is not the case, replace the oil pump assembly.
| Measurement | Value | Validity |
|---|---|---|
| Endfloat between the pump casing support plane and the top of the gears (mm) | 0.025 ÷ 0.070 |
- Check that the height of the oil pressure relief valve spring is within the recommended values; if not, replace the spring.
| Measurement | Value | Validity |
|---|---|---|
| Height of engine oil pressure limit valve spring under load of 8.78 - 9.66 daN (mm) | 36.0 | 1.9 JTD |
| Measurement | Value | Validity |
|---|---|---|
| Height of engine oil pressure limit valve free spring (mm) | 49.8 | 1.9 JTD |
- Fit the oil pressure relief valve and tighten the cap to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Engine oil pressure relief valve | Plug | 1.6 ÷ 2.0 | 1.9 JTD |
- Fit the driven gear.
- Fit the drive gear.
- Fit the oil pump cover and tighten the bolts.
Manually rotate the gears to check that they turn without sticking.
