H036 controls on tunnel

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Manual electric controls › H036 controls on tunnel

Connectors and pin-outsH036 controls on tunnel

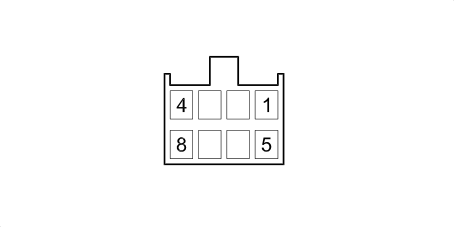

H036 CONTROLS ON TUNNEL

Wiring	Colour
See 20 DASHBOARD	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NZ	X	See P050 CIGAR LIGHTER / CURRENT SOCKET	3
				See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	5
				See G030 GLOVE COMPARTMENT LIGHT	1
2	0,35	AM		See D001C FRONT/DASHBOARD COUPLING (FRONT)	16
3	0,35	LG		See D097G SHORT CIRCUIT COUPLING (DASHBOARD)	5
4	0,35	AG		See D001C FRONT/DASHBOARD COUPLING (FRONT)	15
5	0,35	BM		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	9
6	0,35	LS		See D020A DASHBOARD/REAR COUPLING (DASHBOARD)	8
7	0,35	LG		See D097G SHORT CIRCUIT COUPLING (DASHBOARD)	9
8	0,35	GV		See M001H BODY COMPUTER (DASHBOARD)	13
