P070 radio hi-fi amplifier

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Various consumers › P070 radio hi-fi amplifier

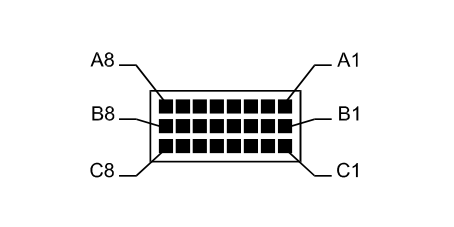

Connectors and pin-outsP070 radio hi-fi amplifier

P070 RADIO HI-FI AMPLIFIER

Wiring	Colour
See 59 HI FI SYSTEM BRIDGE	GRIGIO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A2	1,5	AG		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	3
A3	1,5	AB		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	4
A4	1,5	CN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	7
A5	1,5	GN		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	8
A6	1,5	BG		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	1
A7	1,5	BR		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	2
B2	1,5	GR		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	5
B3	1,5	CB		See D068B HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	6
B4	0,35	AN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	6
B5	0,35	MV		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	4
B6	0,35	LR		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	8
B7	0,35	NZ		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	2
C1	2,5	N		See D068C HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	C
C2	0,5	BC		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	9
C3	0,5	B		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	10
C4	0,35	BN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	5
C5	0,35	MN		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	3
C6	0,35	HL		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	7
C7	0,35	BZ		See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	1
C8	2,5	R		See D068C HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE)	A
