P020 radio
- Make
- Fiat
- Model
- Croma Factory Service Manual
- Year
- 2005–2010
- Section
- Various consumers › P020 radio
Connectors and pin-outsP020 radio

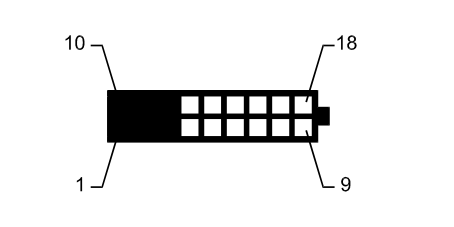

P020 RADIO
P020A – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,35 | NS | See D097D SHORT CIRCUIT COUPLING (DASHBOARD) | 4 | |
| 2 | 0,5 | B | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 10 | |
| 3 | 0,35 | BS | See D097C SHORT CIRCUIT COUPLING (DASHBOARD) | 4 | |
| 4 | 0,35 | LG | See D097G SHORT CIRCUIT COUPLING (DASHBOARD) | 3 | |
| 7 | 1,5 | RV | See D001A FRONT/DASHBOARD COUPLING (FRONT) | 13 | |
| 8 | 2,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD) | 3 | |
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,35 | NS | See D097D SHORT CIRCUIT COUPLING (DASHBOARD) | 4 | |
| 2 | 0,5 | B | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 10 | |
| 3 | 0,35 | BS | See D097C SHORT CIRCUIT COUPLING (DASHBOARD) | 4 | |
| 4 | 1,5 | SN | See D001A FRONT/DASHBOARD COUPLING (FRONT) | 13 | |
| 8 | 2,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD) | 3 | |
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 5 | 0,5 | B | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 10 | |
| 6 | 0,5 | GR | See D097F SHORT CIRCUIT COUPLING (DASHBOARD) | 3 | |
| 7 | 0,35 | LG | See D097G SHORT CIRCUIT COUPLING (DASHBOARD) | 3 | |
| 8 | 2,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD) | 3 | |
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,35 | NS | See D097D SHORT CIRCUIT COUPLING (DASHBOARD) | 4 | |
| 3 | 0,35 | BS | See D097C SHORT CIRCUIT COUPLING (DASHBOARD) | 4 | |
| 4 | 1,5 | SN | See D001A FRONT/DASHBOARD COUPLING (FRONT) | 13 | |
| 8 | 2,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD) | 3 | |
P020B – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | GN | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 5 | |
| 2 | 1,5 | NZ | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 6 | |
| 3 | 1,5 | CN | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 7 | |
| 4 | 1,5 | NV | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 8 | |
| 5 | 1,5 | AR | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 1 | |
| 6 | 1,5 | MN | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 2 | |
| 7 | 1,5 | BG | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 3 | |
| 8 | 1,5 | NR | See D068A HI-FI SYSTEM COUPLING (HI FI SYSTEM BRIDGE) | 4 | |
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 1,5 | GN | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 5 | |
| 2 | 1,5 | NZ | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 6 | |
| 3 | 1,5 | CN | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 7 | |
| 4 | 1,5 | NV | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 8 | |
| 5 | 1,5 | AR | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 1 | |
| 6 | 1,5 | MN | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 2 | |
| 7 | 1,5 | BG | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 3 | |
| 8 | 1,5 | NR | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 4 | |
P020C – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | _ |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 6 | 0,5 | BC | See D020B DASHBOARD/REAR COUPLING (DASHBOARD) | 9 | |
P020D – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | _ |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 7 | 0,5 | BV | See D099 RADIO PHONE PREPARATION COUPLING | 3 | |
| 8 | 0,5 | AB | See D099 RADIO PHONE PREPARATION COUPLING | 4 | |
| 9 | 0,5 | CN | See D099 RADIO PHONE PREPARATION COUPLING | 1 | |
| 12 | 0,5 | NZ | See D099 RADIO PHONE PREPARATION COUPLING | 10 | |
P020E – Change cd
| Wiring | Colour |
|---|---|
| See 79 CHANGE CD | _ |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 13 | 0,5 | G | See P075 CD CHANGER MODULE | 13 | |
| 14 | 0,5 | L | See P075 CD CHANGER MODULE | 14 | |
| 15 | 1 | R | See P075 CD CHANGER MODULE | 15 | |
| 16 | 0,5 | V | See P075 CD CHANGER MODULE | 16 | |
| 17 | 1 | N | See P075 CD CHANGER MODULE | 17 | |
| 18 | 0,5 | SCH | See P075 CD CHANGER MODULE | 18 | |
| 19 | 0,5 | B | See P075 CD CHANGER MODULE | 19 | |
| 20 | 0,5 | LN | See P075 CD CHANGER MODULE | 20 | |
P020F – Dashboard
| Wiring | Colour |
|---|---|
| See 20 DASHBOARD | NERO |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 9 | 0,35 | AB | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 2 | |
| 12 | 0,5 | N | See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD) | 12 | |
| 18 | 0,35 | AL | See D020A DASHBOARD/REAR COUPLING (DASHBOARD) | 1 | |
