D099 radio phone preparation coupling

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Intermediate couplings › D099 radio phone preparation coupling

Connectors and pin-outsD099 radio phone preparation coupling

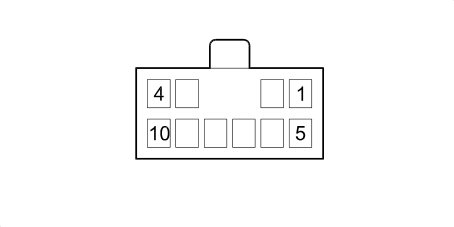

D099 RADIO PHONE PREPARATION COUPLING

Wiring	Colour
See 20 DASHBOARD	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	CN		See P020D RADIO (DASHBOARD)	9
3	0,5	BV		See P020D RADIO (DASHBOARD)	7
4	0,5	AB		See P020D RADIO (DASHBOARD)	8
7	0,5	LG		See D097G SHORT CIRCUIT COUPLING (DASHBOARD)	4
8	0,5	GR		See D097F SHORT CIRCUIT COUPLING (DASHBOARD)	6
9	0,5	GL		See B002H JUNCTION UNIT UNDER DASHBOARD (DASHBOARD)	8
10	0,5	NZ		See P020D RADIO (DASHBOARD)	12
