D213 fuel tank coupling

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Intermediate couplings › D213 fuel tank coupling

Connectors and pin-outsD213 fuel tank coupling

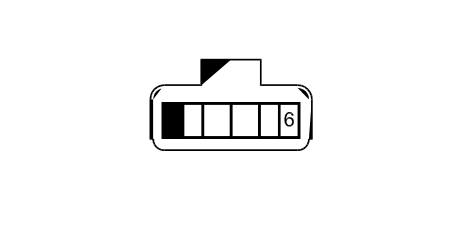

D213 FUEL TANK COUPLING

1.8, 2.2

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NS		See N040 FUEL PUMP AND LEVEL GAUGE	1
2	0,5	LS		See N040 FUEL PUMP AND LEVEL GAUGE	2
3	2	NZ		See N040 FUEL PUMP AND LEVEL GAUGE	3
4	2,5	MB		See N040 FUEL PUMP AND LEVEL GAUGE	4

1.9 JTD 8v, 1.9 JTD 16v, 2.4 JTD 20v

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NS		See N040 FUEL PUMP AND LEVEL GAUGE	1
2	0,5	LS		See N040 FUEL PUMP AND LEVEL GAUGE	2
3	2	NZ		See N040 FUEL PUMP AND LEVEL GAUGE	3
4	2,5	MB		See N040 FUEL PUMP AND LEVEL GAUGE	4
5	1,5	NZ		See N044 ADDITIONAL HEATER ELECTRIC PUMP	1
6	1,5	M		See N044 ADDITIONAL HEATER ELECTRIC PUMP	2
