D047 clock spring coupling

Make

Fiat

Model

Croma Factory Service Manual

Year

2005–2010

Section

Intermediate couplings › D047 clock spring coupling

Connectors and pin-outsD047 clock spring coupling

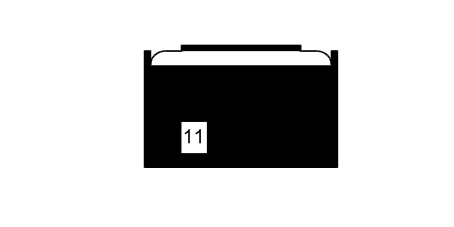

D047 CLOCK SPRING COUPLING

Wiring	Colour
See 20 DASHBOARD	_

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	MN		See D001A FRONT/DASHBOARD COUPLING (FRONT)	12
3	0,35	NS		See D097D SHORT CIRCUIT COUPLING (DASHBOARD)	2
4	0,35	BS		See D097C SHORT CIRCUIT COUPLING (DASHBOARD)	2
5	0,35	LG		See D097G SHORT CIRCUIT COUPLING (DASHBOARD)	2
6	0,35	NZ	X	See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	24
				See C020A PASSENGER SIDE DASHBOARD EARTH (DASHBOARD)	2
				See M089 STEERING LOCK CONTROL UNIT (NBS)	A4
9	0,5	LN		See M060B AIR BAG CONTROL UNIT (DASHBOARD)	19
10	0,5	BV		See M060B AIR BAG CONTROL UNIT (DASHBOARD)	20
11	0,5	B		See M060B AIR BAG CONTROL UNIT (DASHBOARD)	16
12	0,5	AR		See M060B AIR BAG CONTROL UNIT (DASHBOARD)	15
