PISTON WITH CONNECTING ROD - R.R

Operation 1028H20 · PISTONS AND CONNECTING RODS

2.2

Op. 1028H10 CONNECTING ROD AND PISTON SET - R.R

bearing in mind that only one piston and connecting rod is worked on.

1.8

Removing

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 0010T11 ENGINE OIL - CHECK LEVEL AND TOP UP, IF NECESSARY

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 1032D27 TIMING SYSTEM FRONT PROTECTIVE COVER (LOWER PART) - R.R.

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 1092G14 ENGINE COMPONENT SINGLE BELT MOVING TENSIONER - R + R

Op. 1092A10 CRANKSHAFT PULLEY - R + R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1032B10 TOOTHED TIMING BELT - R + R FOR TIMING ADJUSTMENT OR REPLACEMENT

Op. 1008B10 POWER UNIT FRONT SUPPORT FLEXIBLE MOUNTING (TIMING SIDE) - REPLACE

Op. 1008A46 POWER UNIT RIGID SUPPORT - TIMING SIDE - R.R.

Op. 1084A16 OIL DIPSTICK PIPE - R.R

Op. 1072C44 EXHAUST MANIFOLD HEAT SHIELD - R+R

Op. 1080B94 FRONT LAMBDA SENSOR TO WITH CATALYTIC CONVERTER - R.R

Op. 1072C16 EXHAUST MANIFOLD WITH CATALYTIC CONVERTER - R.R.

Op. 1016C10 SINGLE CYLINDER HEAD - R.R. AND REPLACE GASKET

Op. 1076B18 RIGID SECTION OF EXHAUST PIPE BETWEEN CATALYTIC CONVERTER AND SILENCER - R + R

Op. 1020A20 CRANKCASE OIL SUMP - R.R CLEAN SURFACES FOR SEALANT APPLICATION

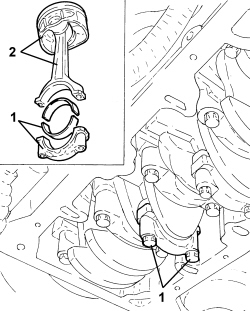

- Mark the position of the connecting rod cap in relation to the connecting rod to be removed.

1. Undo the bolts securing the connecting rod cap and remove it complete with lower half-bearing.

2. Release and remove the piston and connecting rod plus upper half-bearing.

The arrow (a) on the piston crown facing the timing side indicates the fitting direction. The connecting rod-cap matching is the "BREAK" with a compulsory position. The projection (b) on the connecting rod and the cap should be facing the flywheel with the arrow on the crown pointing towards the timing side to ensure the correct piston-connecting rod matching.

Refitting

- Place the piston-connecting rod assembly complete with upper half-bearing in position using a suitable tool for compressing the circlips.

- Fit the cap complete with lower half-bearing and tighten the bolts to the recommended torque.

Op. 1020A20 CRANKCASE OIL SUMP - R.R CLEAN SURFACES FOR SEALANT APPLICATION

Op. 1076B18 RIGID SECTION OF EXHAUST PIPE BETWEEN CATALYTIC CONVERTER AND SILENCER - R + R

Op. 1016C10 SINGLE CYLINDER HEAD - R.R. AND REPLACE GASKET

Op. 1072C16 EXHAUST MANIFOLD WITH CATALYTIC CONVERTER - R.R.

Op. 1080B94 FRONT LAMBDA SENSOR TO WITH CATALYTIC CONVERTER - R.R

Op. 1072C44 EXHAUST MANIFOLD HEAT SHIELD - R+R

Op. 1084A16 OIL DIPSTICK PIPE - R.R

Op. 1008A46 POWER UNIT RIGID SUPPORT - TIMING SIDE - R.R.

Op. 1008B10 POWER UNIT FRONT SUPPORT FLEXIBLE MOUNTING (TIMING SIDE) - REPLACE

Op. 1032B10 TOOTHED TIMING BELT - R + R FOR TIMING ADJUSTMENT OR REPLACEMENT

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1092A10 CRANKSHAFT PULLEY - R + R

Op. 1092G14 ENGINE COMPONENT SINGLE BELT MOVING TENSIONER - R + R

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 1032D27 TIMING SYSTEM FRONT PROTECTIVE COVER (LOWER PART) - R.R.

Op. 1032D26 TIMING SYSTEM FRONT PROTECTIVE COVER (UPPER PART) - R.R.

Op. 0010T11 ENGINE OIL - CHECK LEVEL AND TOP UP, IF NECESSARY

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R
