CNG/METHANE SWITCH - R.R.

Operation 1058A20 · GAS CIRCUIT MULTI POINT INJECTION

2.0 16V

Removing

Disconnect the negative battery terminal.

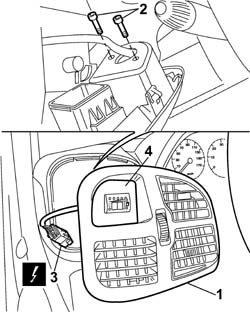

1. Release the left side vent.

2. Undo the bolts fixing the CNG/petrol selector switch to the trim.

3. Disconnect the electrical connection.

4. Remove the CNG/petrol selector switch from the housing in the trim.

Refitting

Fit the CNG/petrol selector switch and tighten the fixing bolts.

Connect the electrical connection for the switch.

Fit the left side vent and check that it is secured.

Connect the negative battery terminal.
