METHANE PRESSURE SENSOR OPERATION CHECK

Check 1058AA

2.0 16V · BIPOWER

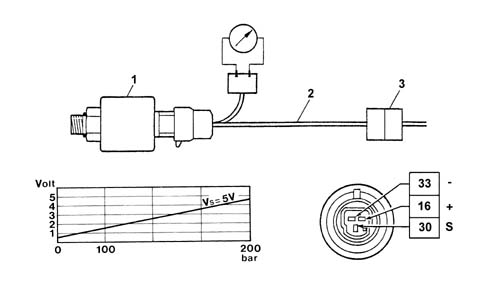

The electrical check is carried out by placing a bridge (2) to be constructed in situ (not supplied as spares) between the sensor (1) and the connector (3) in order to supply the sensor and receive the output signal using a multimeter (voltmeter).

Place the bridge between the sensor and the connector.

With the ignition switched on, check that the sensor supply is about 5 Volt.

Check that the output voltage is between 0.5 V (with the tank full) and 4.5 Vwith the canisters completely full at a pressure of 200 bar.
