Wiring diagrams and electrical functions Car radio wiring diagram

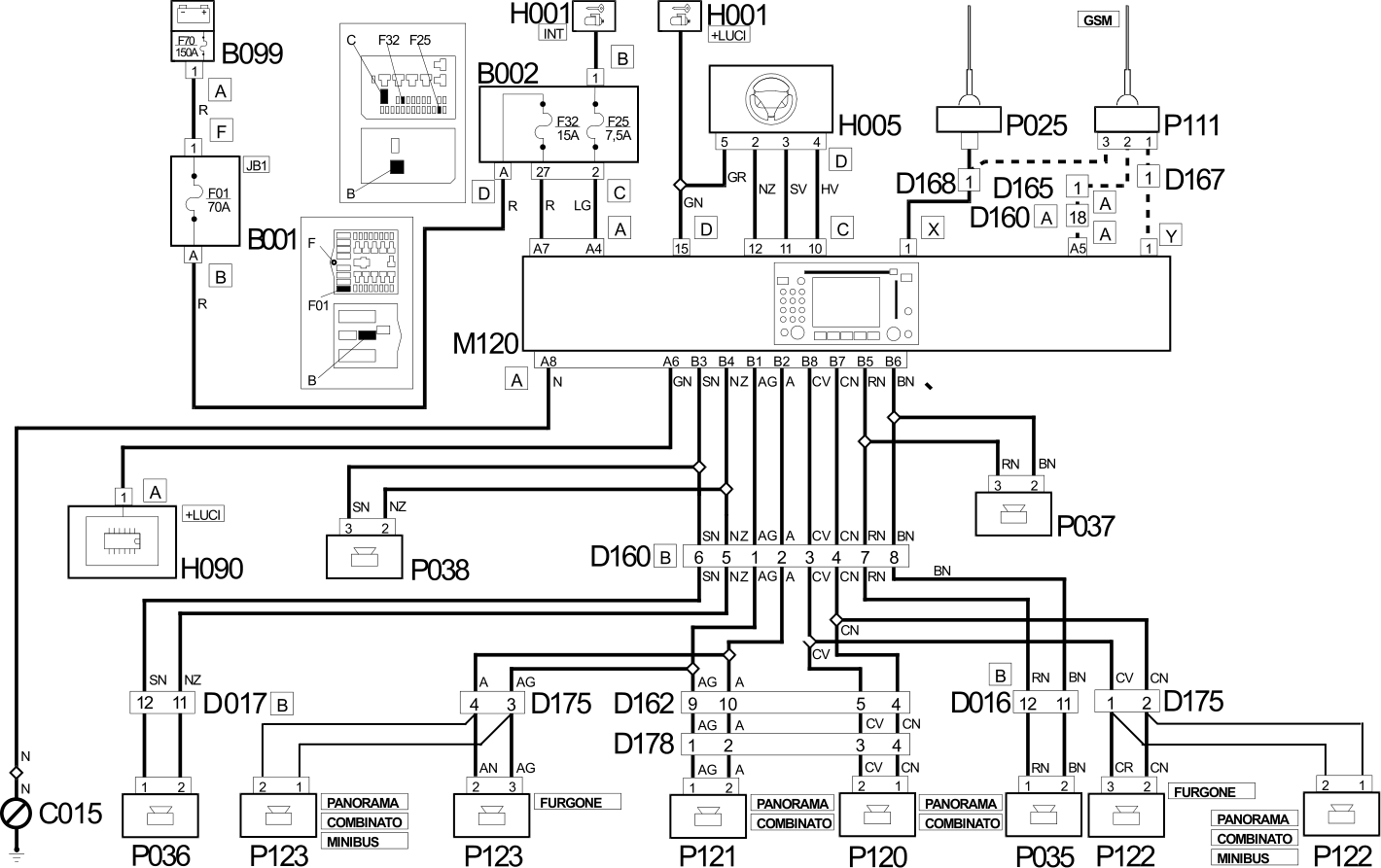

CAR RADIO WIRING DIAGRAM
Combi, Minibus, Panorama, Van
Wiring Diagram
Components
Component code Description Reference to the assembly B001 JUNCTION UNIT 5,505A B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C015 DASHBOARD EARTH, DRIVER'S SIDE D016 ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING D017 ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING D167 COAXIAL CABLE FOR GSM AERIAL COUPLING D168 COAXIAL CABLE FOR RADIO AERIAL COUPLING D175 DASHBOARD/PASSENGER COURTESY LIGHT COUPLING D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING H001 IGNITION SWITCH Op. 5520A IGNITION SWITCH H005 STEERING COLUMN SWITCH UNIT 5,550A H090 SWITCH CONTROL PANEL 5,505A M120 Connect front panel P025 AERIAL FEED/AMPLIFIER P035 SPEAKER ON FRONT DOOR LEFT 5570T P036 SPEAKER IN RIGHT FRONT DOOR 5570T P037 LEFT FRONT SPEAKER IN DASHBOARD P038 RIGHT FRONT SPEAKER IN DASHBOARD P111 P120 LEAF REAR SPEAKER IN SIDE PANEL P121 RIGHT REAR SPEAKER IN SIDE PANEL P122 LEFT REAR SPEAKER IN ROOF P123 RIGHT REAR SPEAKER IN ROOF

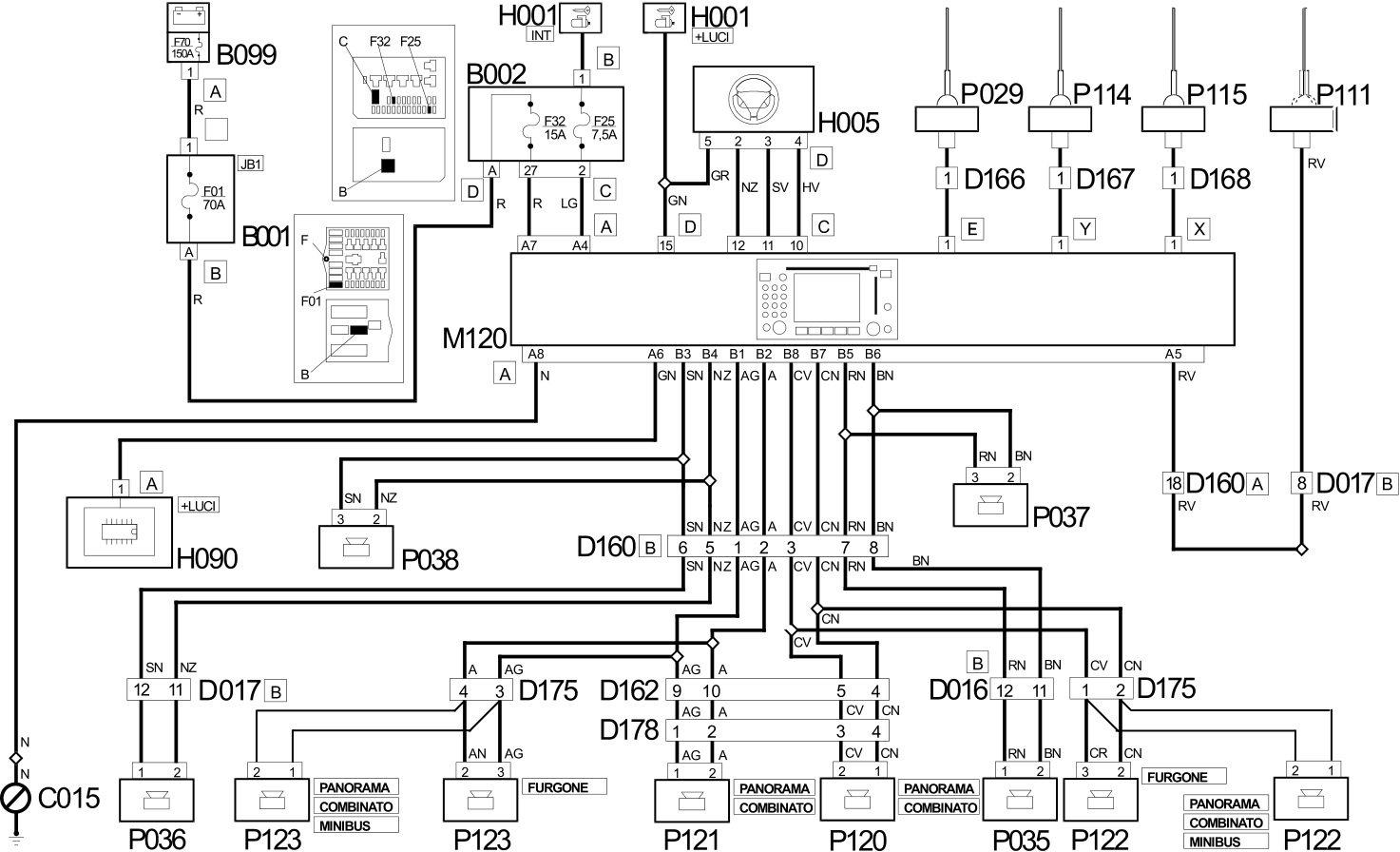

Aerial on mirror, Combi, Minibus, Panorama, Van
Wiring Diagram
Components
Component code Description Reference to the assembly B001 JUNCTION UNIT 5,505A B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C015 DASHBOARD EARTH, DRIVER'S SIDE D016 ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING D017 ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D162 OPTIONAL DASHBOARD/LEFT REAR COUPLING D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING D166 COAXIAL CABLE FOR GPS AERIAL COUPLING D167 COAXIAL CABLE FOR GSM AERIAL COUPLING D168 COAXIAL CABLE FOR RADIO AERIAL COUPLING D175 DASHBOARD/PASSENGER COURTESY LIGHT COUPLING D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING H001 IGNITION SWITCH Op. 5520A IGNITION SWITCH H005 STEERING COLUMN SWITCH UNIT 5,550A H090 SWITCH CONTROL PANEL 5,505A M120 Connect front panel P029 GPS AERIAL FOR NAVIGATOR P035 SPEAKER ON FRONT DOOR LEFT 5570T P036 SPEAKER IN RIGHT FRONT DOOR 5570T P037 LEFT FRONT SPEAKER IN DASHBOARD P038 RIGHT FRONT SPEAKER IN DASHBOARD P111 P114 ANTENNA GSM (FRONT PASSENGER DOOR) P115 ANTENNA AUTORADIO (FRONT PASSENGER DOOR) P120 LEAF REAR SPEAKER IN SIDE PANEL P121 RIGHT REAR SPEAKER IN SIDE PANEL P122 LEFT REAR SPEAKER IN ROOF P123 RIGHT REAR SPEAKER IN ROOF

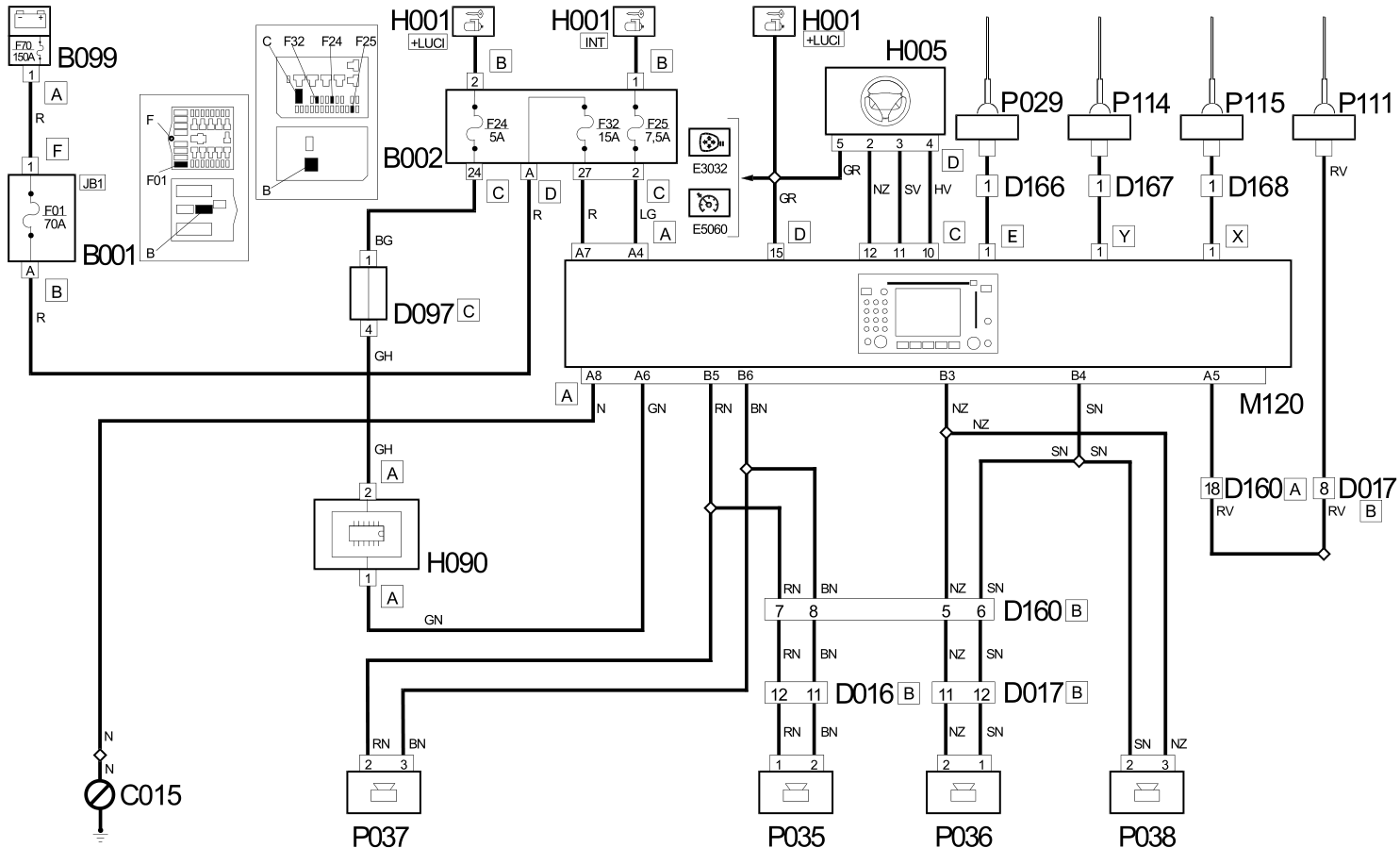

Aerial on mirror, Chassis cab
Wiring Diagram
Components
Component code Description Reference to the assembly B001 JUNCTION UNIT 5,505A B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C015 DASHBOARD EARTH, DRIVER'S SIDE D016 ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING D017 ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING D097 SHORT CIRCUITING COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING D166 COAXIAL CABLE FOR GPS AERIAL COUPLING D167 COAXIAL CABLE FOR GSM AERIAL COUPLING D168 COAXIAL CABLE FOR RADIO AERIAL COUPLING D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING H001 IGNITION SWITCH Op. 5520A IGNITION SWITCH H005 STEERING COLUMN SWITCH UNIT 5,550A H090 SWITCH CONTROL PANEL 5,505A M120 Connect front panel P035 SPEAKER ON FRONT DOOR LEFT 5570T P036 SPEAKER IN RIGHT FRONT DOOR 5570T P037 LEFT FRONT SPEAKER IN DASHBOARD P038 RIGHT FRONT SPEAKER IN DASHBOARD P111 P114 ANTENNA GSM (FRONT PASSENGER DOOR) P115 ANTENNA AUTORADIO (FRONT PASSENGER DOOR)

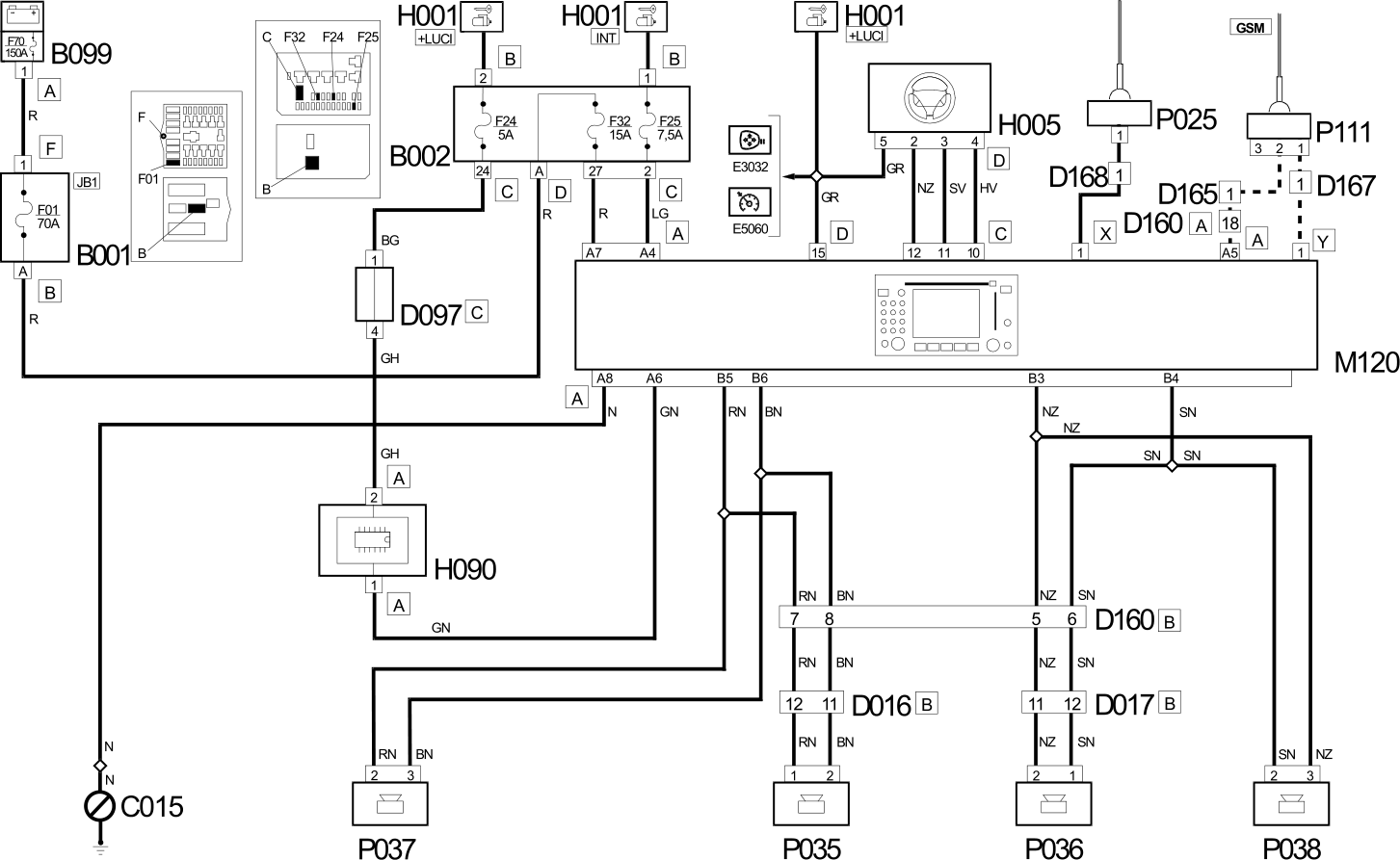

Chassis cab
Wiring Diagram
Components
Component code Description Reference to the assembly B001 JUNCTION UNIT 5,505A B002 JUNCTION UNIT UNDER DASHBOARD B099 MAXI FUSE BOX ON BATTERY C015 DASHBOARD EARTH, DRIVER'S SIDE D016 ADDITIONAL DASHBOARD/LEFT FRONT DOOR COUPLING D017 ADDITIONAL DASHBOARD/RIGHT FRONT DOOR COUPLING D097 SHORT CIRCUITING COUPLING D160 DASHBOARD/OPTIONAL DASHBOARD COUPLING D165 OPTIONAL DASHBOARD/OPTIONAL COURTESY LIGHT COUPLING D167 COAXIAL CABLE FOR GSM AERIAL COUPLING D168 COAXIAL CABLE FOR RADIO AERIAL COUPLING D178 LEFT REAR/REAR SPEAKER AND REAR CURRENT SOCKET BRIDGE COUPLING H001 IGNITION SWITCH Op. 5520A IGNITION SWITCH H005 STEERING COLUMN SWITCH UNIT 5,550A H090 SWITCH CONTROL PANEL 5,505A M120 Connect front panel P025 AERIAL FEED/AMPLIFIER P035 SPEAKER ON FRONT DOOR LEFT 5570T P036 SPEAKER IN RIGHT FRONT DOOR 5570T P037 LEFT FRONT SPEAKER IN DASHBOARD P038 RIGHT FRONT SPEAKER IN DASHBOARD
