PEDAL UNIT MOUNT - R.R.

Operation 3330B38 · PEDAL UNIT

Removing

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

(left side).

Op. 3330B02 PEDAL ASSEMBLY - R.R

1. Undo the upper bolts and remove the accelerator pedal.

2. Undo the bolt (2a) and remove brake pedal (2b).

3. Withdraw pin (3a) and remove clutch pedal (3b).

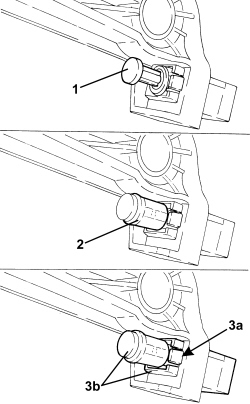

1. Raise the key.

2. Lift the red clip locking bush.

3. Press clips (3a) and remove switch (3b) of pedal mount (3c).

- Remove the brake pedal switch from the pedal mount in the same way as for the clutch pedal switch.

Refitting

- Place the switch in its housing, move the bush back to lock the clips, press the key fully and release to its normal operating position

- Place the clutch pedal back in its housing and secure it using the pin.

- Place the brake pedal back in its housing and secure it using the pin.

- Place the accelerator pedal back in its housing and secure it using the bolts.

Op. 3330B02 PEDAL ASSEMBLY - R.R

Op. 5010C55 LOWER AIR DIFFUSER (ONE) LH OR RH - R.R

(left side).
