CLUTCH PEDAL - R+R
Removing
- Unscrew the brake/clutch fluid reservoir and completely empty the hydraulic clutch control system with reference to
Op. 0010T67 HYDRAULIC CLUTCH SYSTEM - BLEED AIR
1. Press the clutch pedal.

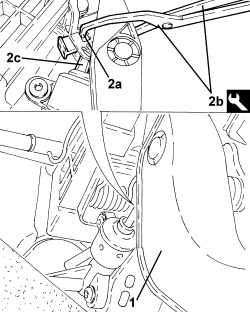

2. Press the edges of retaining device (2a) with tool (2b) and then release the rod of the clutch master cylinder (2c) with the retaining device from the pedal.
| Tool | Description | Function | Validity |
|---|---|---|---|
| 2000010500 | Caliper | Disconnect the master cylinder from the clutch pedal |

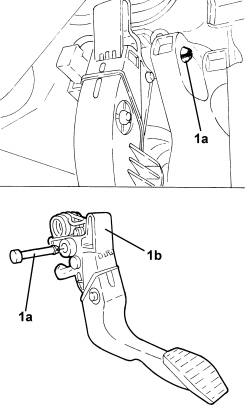

1. Withdraw pin (1a) and remove clutch pedal (1b).
Refitting
- Position the clutch pedal in its seat and secure with the pin.
- Connect the master cylinder rod with locking device to the clutch pedal.
