CATALYTIC CONVERTER EXCESS TEMPERATURE THERMOCOUPLE - R + R
Removing
- Position the vehicle on a lift.

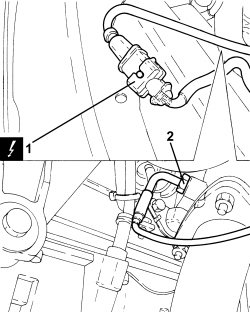

1. Disconnect the electrical connection for the thermal coupling signalling the overheating of the catalytic converter.
| Description | Connector | |
|---|---|---|
| 1 | Upstream particle filter (DPF) temperature sensor | See K189 UPSTREAM PARTICULATE FILTER TEMPERATURE SENSOR (DPF) |
Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
2. Undo the catalytic converter overheating thermal coupling and remove it.
Refitting
1. Position the catalytic converter overheating thermal coupling in its housing and tighten it to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Exhaust gas temperature sensor on particle filter | M14x1.5 | 4.5 | 1.3 Multijet 90CV 1.9 Multijet |
Op. 7055B54 UNDER ENGINE PROTECTION/GUARD - R.R.
- Connect the electrical connection for the thermal coupling signalling the overheating of the catalytic converter.
- Remove the vehicle from the lift.
