ENGINE OIL RECOVERY PIPE - R + R

Operation 1080D30 · CRANKCASE VAPOUR/GAS RECIRCULATION SYSTEM

1.3 Multijet

Removing

- Position the vehicle on a lift.

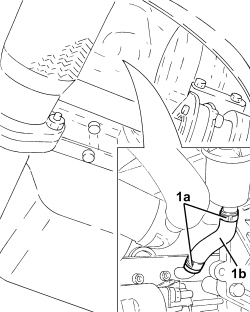

1. Loosen the bands (1a) and remove the engine oil recovery pipe (1b).

Refitting

- Refit the engine oil recovery pipe and secure it using the bands.
