ENGINE OIL PUMP - R+R

Operation 1084B12 · ENGINE OIL LUBRICATION CIRCUIT

1.3 Multijet

Removing

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 0010T12 ENGINE OIL AND FILTER - REPLACE

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 1092A10 CRANKSHAFT PULLEY - R + R

Op. 2110A60 MANUAL GEARBOX/ENGINE COUPLING BRACKET - R+R

Op. 1020A20 CRANKCASE OIL SUMP - R.R CLEAN SURFACES FOR SEALANT APPLICATION

Op. 1020B10 COVER FOR TIMING SYSTEM WITH CHAIN DRIVE - R.R AND REPLACE GASKET

Op. 1084B26 ENGINE OIL INTAKE DUCT - R.R

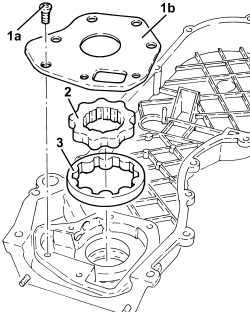

1. Undo the bolts (1a) and remove the oil pump cover (1b).

2. Remove the drive gear.

3. Remove the driven gear.

Refitting

- Place the driven gear in position.

- Place the drive gear in position.

- Fit the oil pump cover in its housing and tighten the bolts.

Manually rotate the gears to check that they turn without sticking.

Op. 1084B26 ENGINE OIL INTAKE DUCT - R.R

Op. 1020B10 COVER FOR TIMING SYSTEM WITH CHAIN DRIVE - R.R AND REPLACE GASKET

Op. 1020A20 CRANKCASE OIL SUMP - R.R CLEAN SURFACES FOR SEALANT APPLICATION

Op. 2110A60 MANUAL GEARBOX/ENGINE COUPLING BRACKET - R+R

Op. 1092A10 CRANKSHAFT PULLEY - R + R

Op. 1092G10 SINGLE ENGINE BELT - R.R

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R

Op. 0010T20 ENGINE COOLANT - CHANGE

Op. 0010T12 ENGINE OIL AND FILTER - REPLACE
