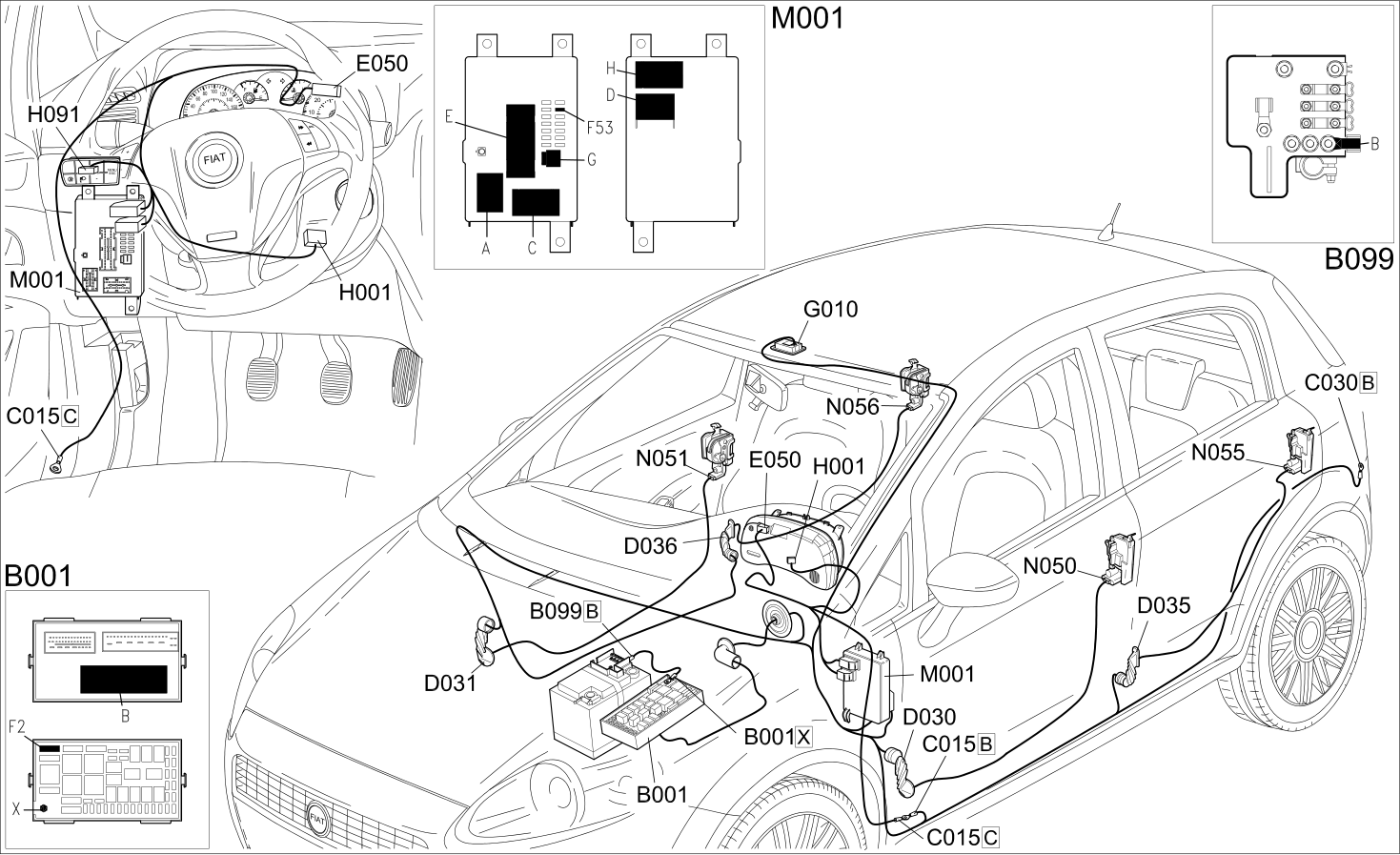

COURTESY LIGHTS - COMPONENT LOCATION

HIGH trim level

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C030	LEFT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E10 FRONT COURTESY LIGHT - R+R
G020	REAR (CENTRE) COURTESY LIGHT
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED

LOW trim level

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C030	LEFT REAR EARTH
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G010	FRONT COURTESY LIGHT	Op. 7040E10 FRONT COURTESY LIGHT - R+R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
N050	DRIVER'S FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N051	RIGHT FRONT DOOR LOCK GEARED MOTOR	Op. 7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY, LEFT OR RIGHT - R.R WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N055	LEFT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
N056	RIGHT REAR DOOR LOCK GEARED MOTOR	Op. 7010N20 REAR SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - R.R. WITH DOOR PANEL AND SUPPORT FRAME REMOVED
