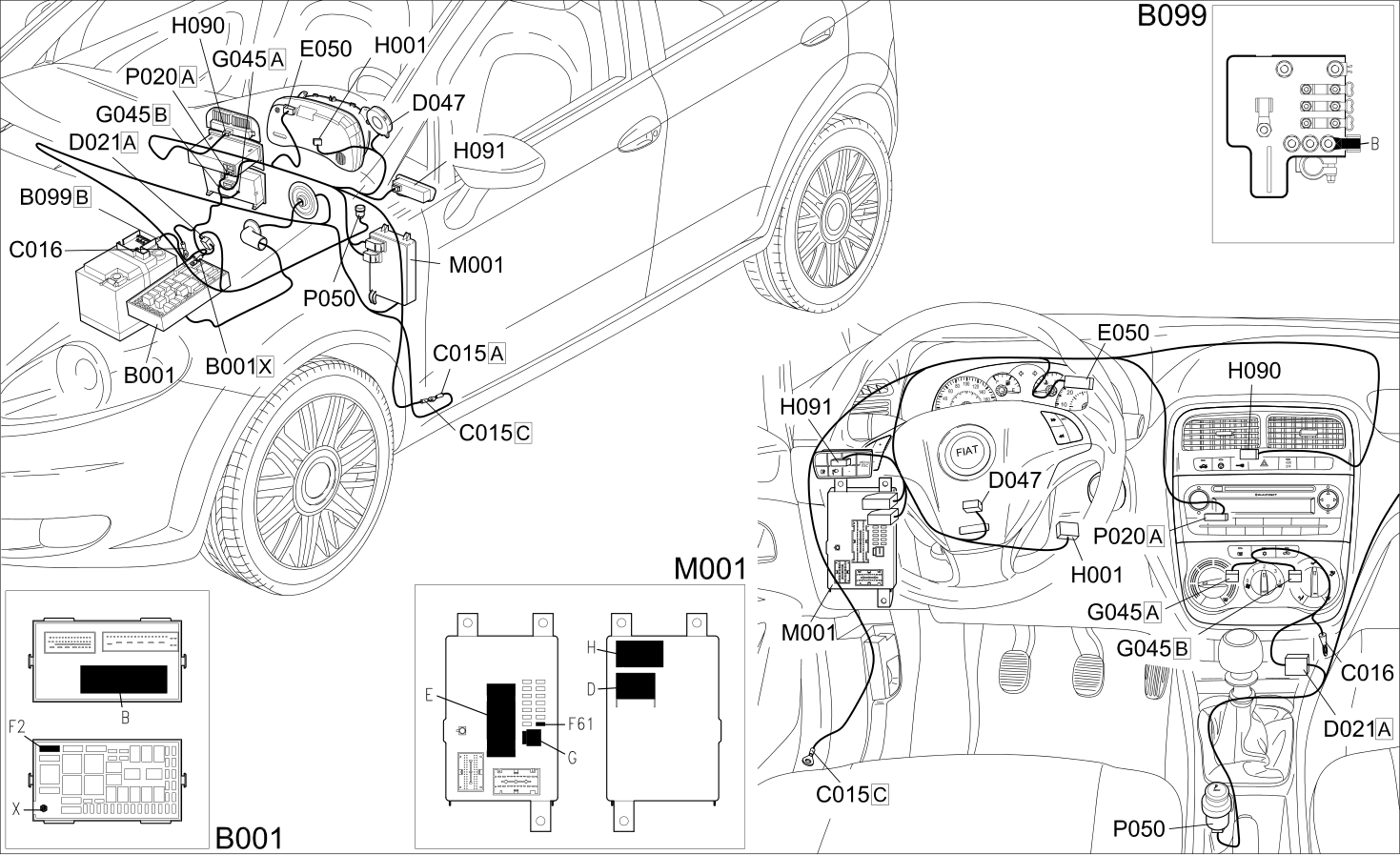

CONTROLS LIGHTING - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C016	AIR CONDITIONING UNIT EARTH
D021	DASHBOARD/AIR CONDITIONING-HEATER COUPLING
D047	CLOCK SPRING COUPLING	Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R
E050	INSTRUMENT PANEL	Op. 5560B10 CONTROL PANEL - R+R
G045	AIR CONDITIONING/HEATER CONTROLS LIGHT	Op. 5040D10 AIR CONDITIONER CONTROLS SUPPORT - R+R OR REPLACE
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
H090	SWITCH CONTROL PANEL	Op. 7040A56 SWITCH UNIT IN DASHBOARD - R.R.
H091	LEFT CONTROL UNIT (PCS, LEFT CONTROL PANEL)	Op. 7040A82 SWITCH UNIT ON LEFT SIDE OF DASHBOARD - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P050	CIGAR LIGHTER / CURRENT SOCKET	Op. 7065C72 FRONT CIGAR LIGHTER SOCKET - R.R.
