R.R. REAR SIDE DOOR
Removing

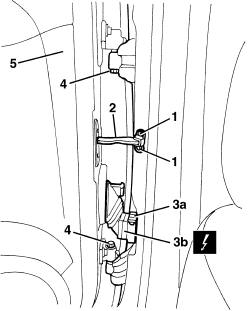

1. Undo the bolts.
2. Close the door carefully to ensure the door opening limiter re-engages. Reopen the door.
3. Raise the retainer (3a) and disconnect the electrical connection (3b).
| Name | Connector | |
|---|---|---|
| 3b | Rear / rear door coupling left | D35 |
| Name | Connector | |
|---|---|---|
| 3b | Rear/right door coupling right | D36 |
4. Undo the hinge bolts.
5. Recover the door.
Refitting
Refit the door on the hinges.
Tighten the hinge bolts.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Bolt | REAR SIDE DOOR | M6 | 1.5 |
Connect the electrical connection and position the retainer.
Check the various appliances on the door are working properly.
Make the check strap come out and tighten the bolts.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Bolt | FRONT DOOR OPENING LIMITER | M8 | 1.5 |
Check the door alignment and, if necessary, - 7010A14 rear side door - adjust centering and moulding - includes adaptation of hinges and seals on door compartment.
If the hinge halves have been disconnected from the door or body, - 7010A14 rear side door - adjust centering and moulding - includes adaptation of hinges and seals on door compartment
