R.R. REAR TRIM (structural element)

Operation 7210B70 · Structure elements-central and rear part

Removing

Check if any of the connected parts are deformed by checking body alignment dimensions. Use appropriate measurement tools (reference rigs, templates or gauges).

Straighten the body if necessary.

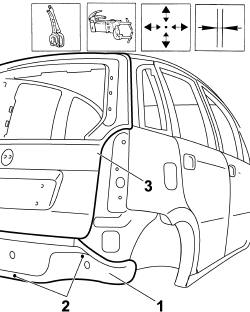

1. Use a pneumatic saw to follow the dotted cutting lines shown in the figure.

2. Cross-sections of key areas as a guide to allow the operator to adjust cutting position and depth in order to avoid damage to the underlying panels.

3. Remove the rear trim from the car.

Use a vibrating cutter with appropriate blade to remove P.V.C. from the cut end of the car rear trim.

Use a rotary brush to remove paint to gain access to the spot welds.

1. Use a chamfering machine to remove the weld spots shown in the figure.

2. Drill out any weld spots not accessible to the chamfering machine.

Use a chisel and mallet to remove spots ground previously.

3. Remove the cut edge of the trim from the car.

1. Straighten the edges using a mallet and profiled stake.

Use a grinding wheel to remove the spot weld residues.

Apply the electroweldable paint finish.

1. Use a grinding wheel to remove the corrosion-proofing from around the edge of the part.

Apply electrogalvanised paint to the edges in contact with the car.

Refitting

1. Position the part on the car correctly and secure using self-locking grippers.

2. Tack the part by carrying out some spot welds.

Remove the self-locking grippers.

3. Position the tailgate and seal provisionally.

Check alignment and ensure the gap around the edge is even.

Remove the components used for adjustment.

1. Use a spot welder to weld the areas shown in the figure.

2. Clench the tab indicated on both sides of the car.

1. Correct any deformations in the panel using a profiled stake and mallet.

Use a grinding wheel to clean and level the newly-welded areas.

Apply rust-proofing to newly welded areas.

1. Seal the joint lines.

Apply paint and wax.

2. Reapply the PVC treatment.
