R.R. FRONT BUMPER

Operation 7210E10 · External parts

Removing

- 7055A43 central front grille - r r

- 4450B02 left front wheel r r

- 7055B90 Left front WHEEL ARCH LINER - R.R.

- 4450B04 right front wheel r r

- 7055B91 Right front WHEEL ARCH LINER - R.R.

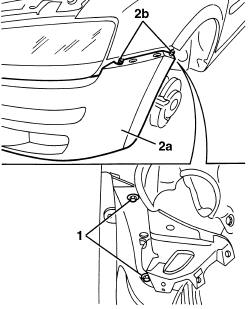

1. Working at both sides of the bumpers, unscrew the upper side bolts.

2. Slightly detach bumper edges (2a) by disengaging the locating pins (2b).

1. Unscrew the lower bumper bolts.

Lower the vehicle.

1. Unscrew the upper bumper bolts.

2. Remove the bumper.

Refitting

Check that the bumper is undamaged.

Position the bumpers by engaging the locating pins and do up the lower bolts.

Raise the car and tighten the lower bolts.

Tighten the upper side bolts.
