R.R. WINDSCREEN BASE TRIM

Operation 7210E22 · External parts

Removing

- 5050B34 windscreen wiper arm/s complete with blade - r+r (right and left)

Open the bonnet lid.

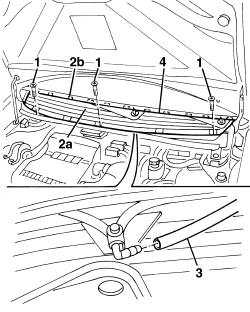

1. Undo the bolts.

2. Move trim (2a) by releasing from retainers (2b).

3. Disconnect the washer fluid pipe.

4. Save the trim.

If necessary, - 5050B10 front windscreen washer jets - r+r clean and/or position (right and left side)

Refitting

Check that the panel is undamaged and that the retainers are undamaged and correctly positioned.

If removed, - 5050B10 front windscreen washer jets - r+r clean and/or position (right and left side)

Fit the trim and do up the retainers.

Connect the pipe - Tighten the bolts.

Close the bonnet lid.

- 5050B34 windscreen wiper arm/s complete with blade - r+r (right and left)
