Introduction - ENGINE COOLING

1.4 16v

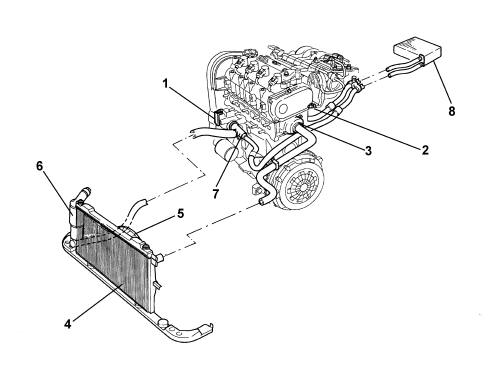

The system consists of the components illustrated in the diagram

1, Water pump

2, Coolant temperature sensor (see 1056)

3, Thermostat

4, Radiator

5, Electric fan

6, Reservoir

7, Water pump rigid inlet pipe

8, Heater unit

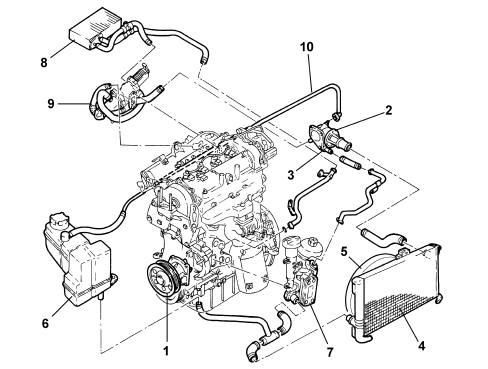

1.3 JTD 16v

COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor Characteristic of working principle 1060G pressure pump electric control

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Engine oil heat exchanger

8 - Vehicle interior heating radiator

9 - E.G.R. exhaust gas heat exchanger Characteristic of working principle 1080C exhaust gas recirculation system (e.g.r.)

10 - Water recirculation pipe
