Engine cooling radiator - r + r

Operation 1088B20 · ENGINE COOLING RADIATOR

1.4 16v

Removing

Position the vehicle on the ramp

Ensure that the ignition key is in the OFF position, then disconnect the negative battery terminal (-).

Proceed with removal - 1048A10 air cleaner filtering element - replace

Proceed with removal - 7210E10 R.R. FRONT BUMPER

1. Loosen the band and disconnect the lower radiator coolant outlet hose from the radiator, radiator side.

Recover the coolant using a suitable container.

1.3 JTD 16v

Removing

Position the vehicle on the ramp

Proceed with removal

Proceed with removal - 7055A43 central front grille - r r

Proceed with removal - 7210E10 R.R. FRONT BUMPER

1. Loosen the band and disconnect the lower radiator coolant outlet hose from the radiator.

Collect the engine coolant in a suitable container.

1.4 16v

1. Disconnect the electrical connections from the engine cooling fan resistor.

2. Disconnect the electrical connection for the radiator cooling fan.

3. Loosen the band and disconnect the upper coolant inlet hose to the radiator.

1.3 JTD 16v

1. Loosen the band and disconnect the upper coolant inlet hose to the radiator.

2. Disconnect the electrical connection from the engine fan motor.

3. Disconnect the electrical connections from the engine cooling fan resistor.

4. Release the electrical wiring (4a) from the securing bands (4b), then move aside.

1.4 16v

1. Undo the bolt fixing the radiator to the bodyshell.

Secure the air conditioning condenser to the bodyshell.

2. Undo the bolts fixing the air conditioning condenser.

1.3 JTD 16v

Secure the air conditioner condenser to the body.

1. Undo the bolts securing the air conditioner condenser to the engine cooling radiator.

2. Undo the upper bolt fixing the engine cooling radiator to the bodyshell.

1.4 16v

1. Position a hydraulic jack under the radiator lower crossmember.

2. Undo the bolts fixing the lower radiator crossmember

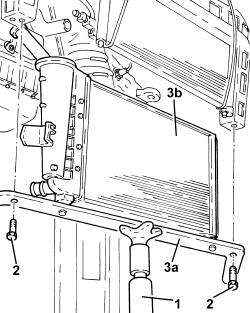

3. Lower the hydraulic jack and remove the lower radiator crossmember (3a), complete with engine cooling radiator (3b) and radiator cooling fan.

1.3 JTD 16v

1. Position a hydraulic jack under the radiator lower crossmember.

2. Undo the bolts securing the radiator bottom crossmember to the bodywork.

3. Lower the hydraulic jack and remove the lower radiator crossmember (3a), complete with engine cooling radiator (3b) and radiator cooling fan.

While lowering the hydraulic jack, check that the turbocharging air-air intercooler pins are released from the lower radiator beam.

1.4 16v

Refitting

Place the lower radiator crossmember complete with engine cooling radiator and radiator cooling fan back in its housing using the hydraulic jack.

Tighten the bolts fixing the lower radiator crossmember.

Tighten the bolts fixing the air conditioning condenser.

Tighten the bolt fixing the radiator to the bodyshell.

Connect the radiator upper coolant inlet hose to the radiator and tighten the band.

Connect the electrical connection to the radiator cooling fan.

Connect the electrical connections to the resistor for the engine cooling fan.

Connect the lower coolant outlet hose from the radiator, radiator side, and tighten the band.

Proceed with refitting - 7210E10 R.R. FRONT BUMPER.

Proceed with refitting - 1048A10 air cleaner filtering element - replace.

Connect the negative (-) battery terminal.

Refill the engine cooling system with coolant - 0010T20 coolant change.

Remove the car from the ramps.

1.3 JTD 16v

1. Working at the bench, release the side bolts securing the radiator cooling fan.

2. Remove the radiator fan (2a) after releasign lower pins (2b) from the lower radiator beam and tabs (2c) press-fitted to the radiator.

3. Separate engine cooling radiator (3a) from the lower radiator beam (3b).

Refitting

Install the engine cooling radiator on the lower radiator beam

Refit radiator cooling fan, securing the lower pins to the lower radiator beam and press-fitting the tabs to the radiator.

Tighten the side bolts fixing the radiator cooling fan.

Place the lower radiator crossmember complete with engine cooling radiator and radiator cooling fan back in its housing using the hydraulic jack.

Tighten the bolts securing the radiator bottom crossmember to the bodywork.

Remove the hydraulic jack from underneath the lower radiator crossmember.

Tighten the upper bolt fixing the engine cooling radiator to the bodyshell.

Tighten the bolts securing the air conditioner condenser to the engine cooling radiator.

Refit the electrical wiring in its seating and attach it.

Connect the electrical connections to the resistor for the engine cooling fan.

Connect the electrical connection to the engine fan motor.

Connect the radiator upper coolant inlet hose to the radiator and tighten the band.

Connect the lower coolant outlet hose to the radiator and tighten the band.

Proceed with refitting - 7210E10 R.R. FRONT BUMPER.

Proceed with refitting - 7055A43 central front grille - r r.

Refill the engine cooling system with coolant. - 0010T20 coolant change

Proceed with refitting.

Remove the car from the ramps.
