RADIO - Wiring diagram
- Make
- Fiat
- Model
- Idea Factory Service Manual
- Year
- 2003–2012
- Section
- Radio accessories › RADIO - Wiring diagram
Wiring diagrams and electrical functionsRADIO - Wiring diagram
RADIO - Wiring diagram

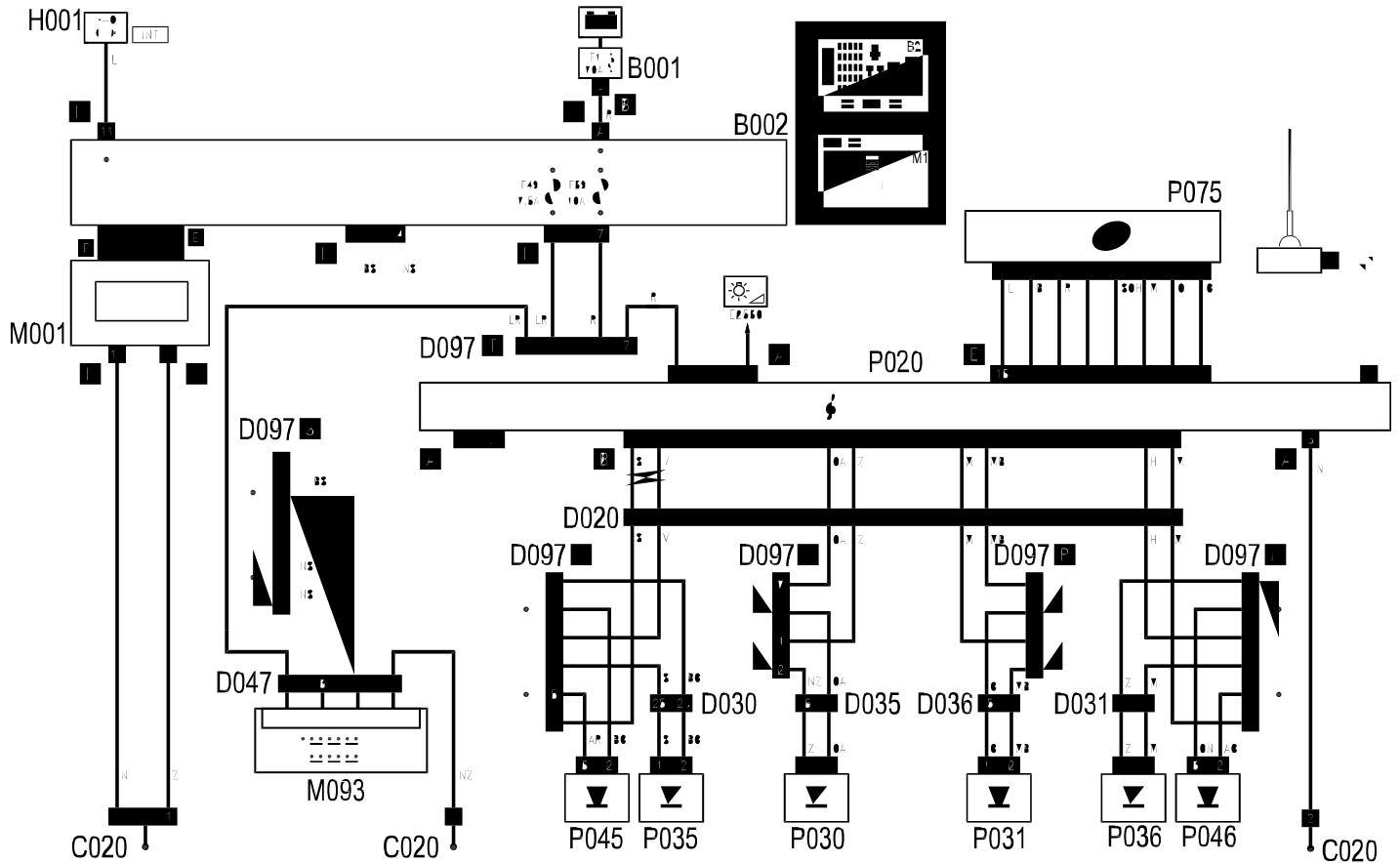

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B98 | Supplementary fuse box | |
| C20 | Passenger side dashboard earth | |
| C31 | Rear right earth | |
| D20 | /Rear dashboard coupling | |
| D30 | Rear coupling for /front door. driver's side | |
| D31 | Front passenger door/ rear coupling. | |
| D35 | Rear / rear door coupling left | |
| D36 | Rear/right door coupling right | |
| D47 | Clock spring coupling | 5580C |
| D97 | Short circuiting coupling | |
| H1 | Ignition switch | 5520A |
| M1 | Body computer | 5505A |
| M93 | Steering wheel node junction unit | |
| P20 | Radio | 7040A |
| P30 | Left rear speaker | 5570T |
| P31 | Right rear speaker | 5570T |
| P35 | Speaker in driver's .front door | 5570T |
| P36 | Speaker in front passenger door | 5570T |
| P45 | Driver's front tweeter speaker | 7040H |
| P46 | Front passenger side tweeter speaker | 7040H |
| P47 | Rear left tweeter speaker | |
| P48 | Rear right tweeter speaker | |
| P70 | Radio amplifier | |
| P75 | CD multi-player |

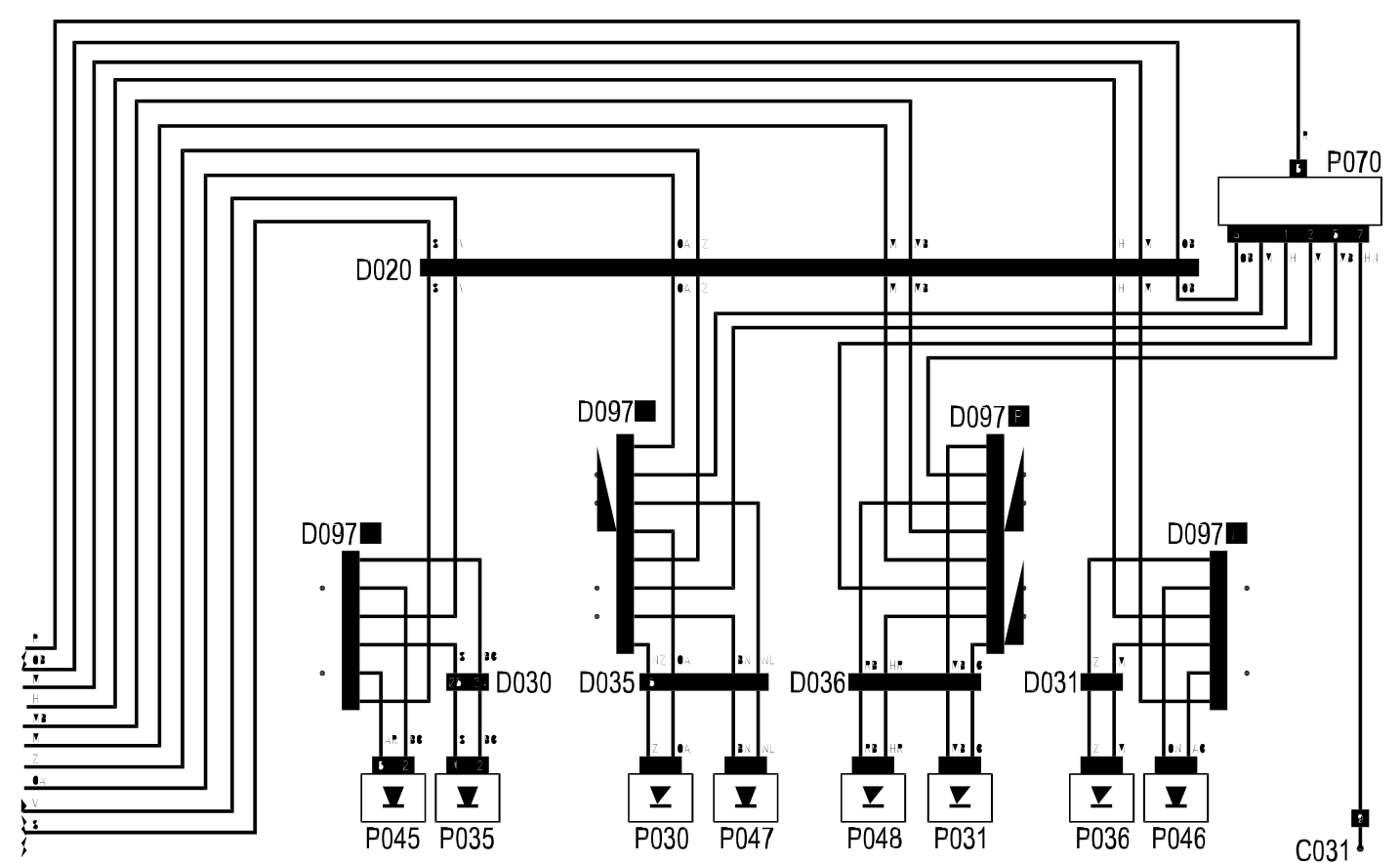

Wiring diagram
COMPONENTS
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B98 | Supplementary fuse box | |
| C20 | Passenger side dashboard earth | |
| C31 | Rear right earth | |
| D20 | /Rear dashboard coupling | |
| D30 | Rear coupling for /front door. driver's side | |
| D31 | Front passenger door/ rear coupling. | |
| D35 | Rear / rear door coupling left | |
| D36 | Rear/right door coupling right | |
| D47 | Clock spring coupling | 5580C |
| D97 | Short circuiting coupling | |
| H1 | Ignition switch | 5520A |
| M1 | Body computer | 5505A |
| M93 | Steering wheel node junction unit | |
| P20 | Radio | 7040A |
| P30 | Left rear speaker | 5570T |
| P31 | Right rear speaker | 5570T |
| P35 | Speaker in driver's .front door | 5570T |
| P36 | Speaker in front passenger door | 5570T |
| P45 | Driver's front tweeter speaker | 7040H |
| P46 | Front passenger side tweeter speaker | 7040H |
| P47 | Rear left tweeter speaker | |
| P48 | Rear right tweeter speaker | |
| P70 | Radio amplifier | |
| P75 | CD multi-player |
