02 · Engine

Diagnostic socket

Make
Fiat
Model
Panda (141) Factory Service Manual
Year
1986–2003
Section
Fuel feed system (2000 range) › Diagnostic socket
10 EngineDiagnostic socket

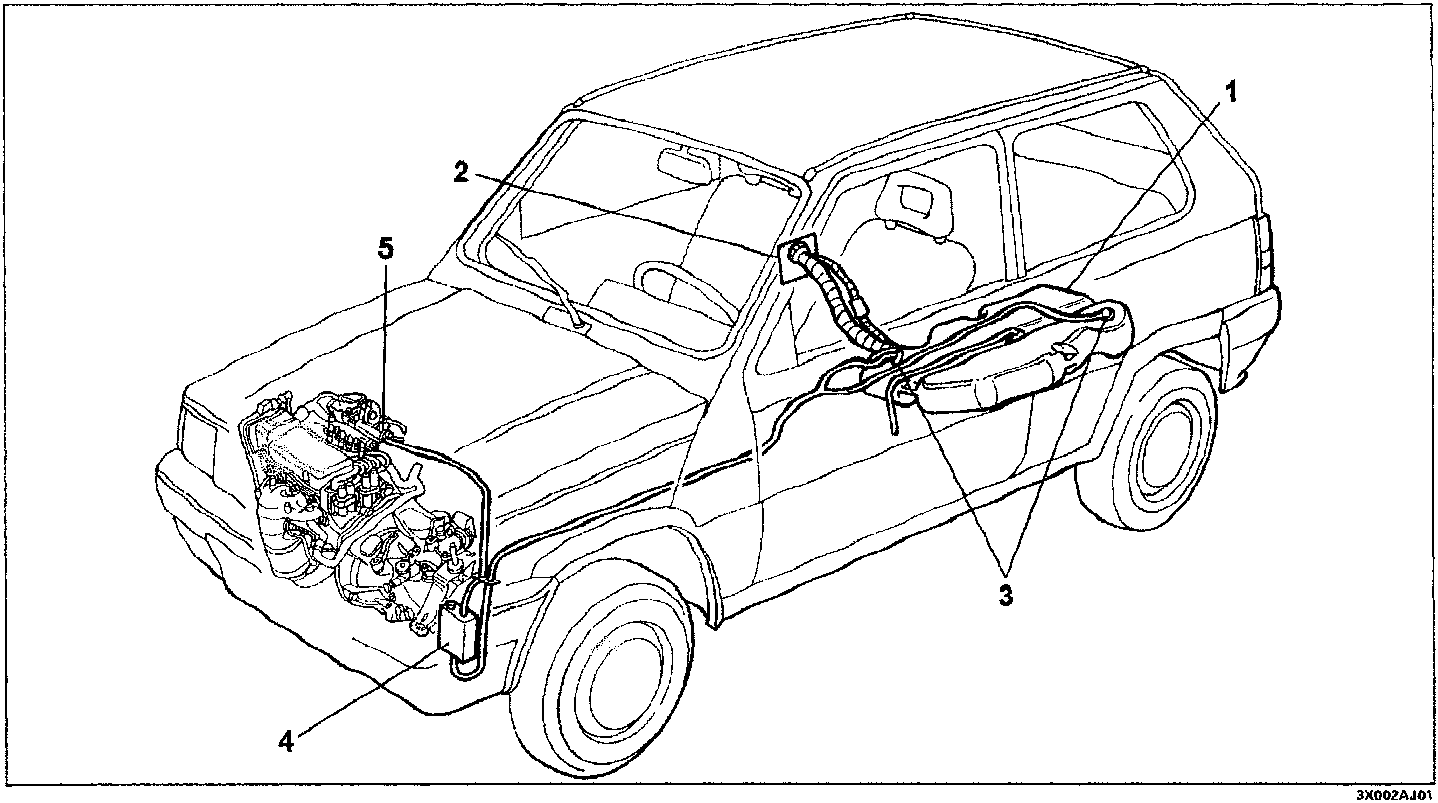

Diagram of the fuel anti-evaporation system layout on the vehicle, showing the fuel tank, filler cap, multifunction valve, charcoal filter, and charcoal filter solenoid valve with callout numbers 1 through 5.
  1. Fuel tank
  2. Filler cap
  3. Multifunction valve
  4. Charcoal filter
  5. Charcoal filter solenoid valve

Compared with previous versions, the fuel anti-evaporation system has several improvements aimed fuel vapours in order to meet the EEC stage 3 EOBD regulations.

The following modifications have been made:

  • multi-purpose valves fitted to the tank
  • solenoid valve integrated in the intake manifold with a rapid type connector
  • filler cap with an attachment cable

DIAGNOSTIC SOCKET

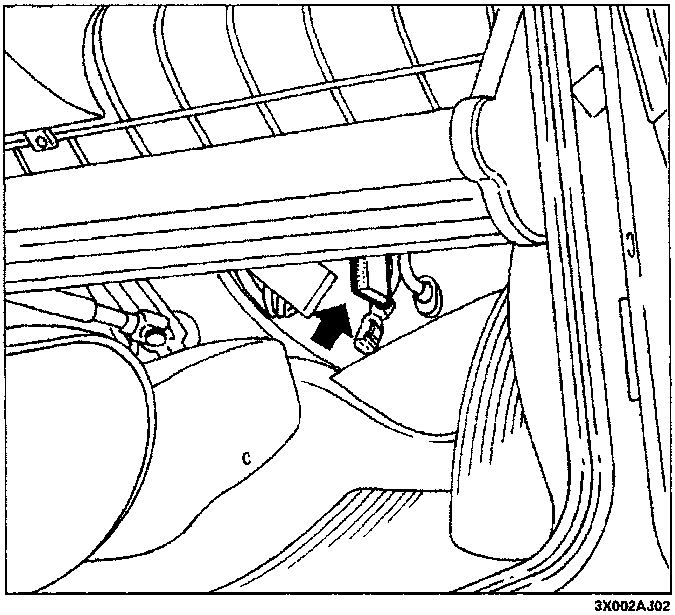

View of the passenger compartment under the oddments pocket showing the location of the diagnostic socket indicated by an arrow.

The diagnostic socket is located in the passenger compartment, under the oddments pocket.

This "standardized" 16 pin type socket carries out the function of connection with the diagnostic equipment (Examiner or other instruments) for other electronic control units present on the vehicle.
