Removing and refitting

Removing and refitting

Proceed as follows:

Disconnect the battery's negative terminal.

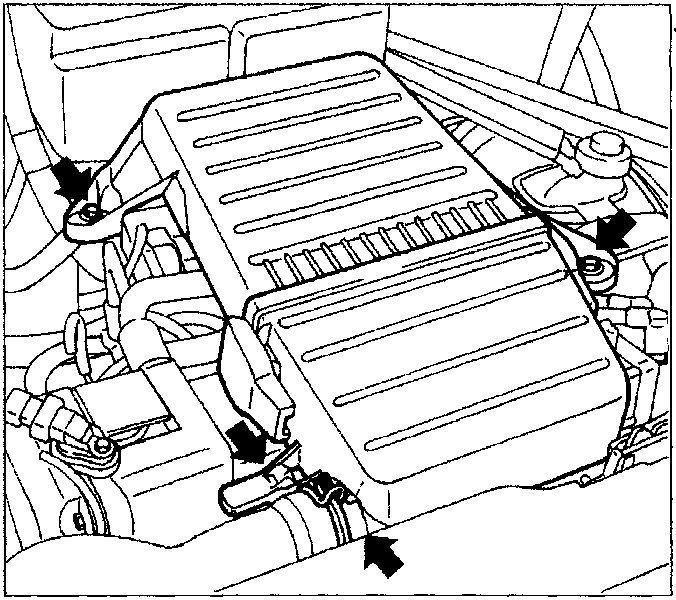

1. Remove the band connecting the filter to the hose.
   Undo the fixing bolts, release the spring and lift up the complete air filter releasing it from the throttle casing;
   Disconnect the crankcase vapour recirculation pipe and remove the air filter.

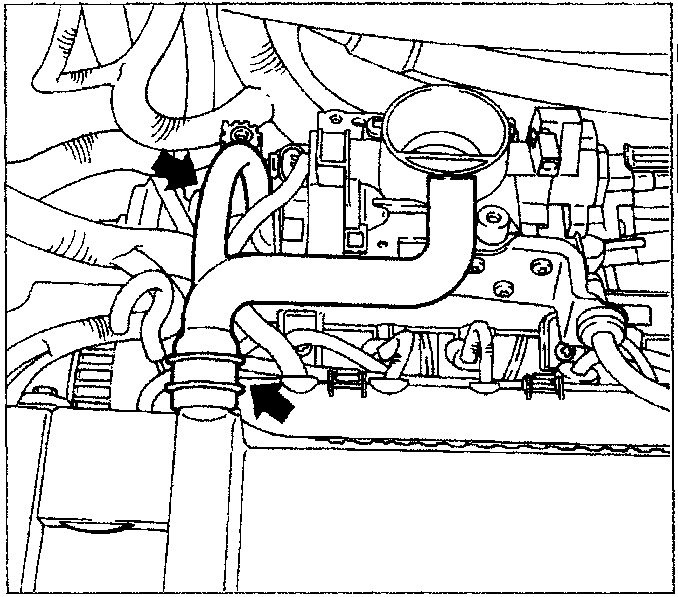

2. Remove the crankcase vapour recirculation pipe.
3. Remove the protective cap (1) for the fuel manifold and release the pressure using tool 1870684000; collect the fuel in a suitable container.

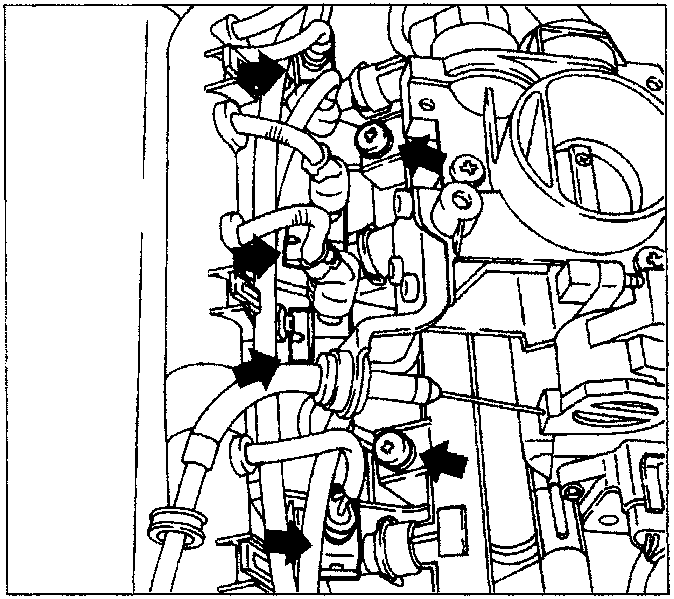

4. Disconnect the rapid connector for the fuel supply pipe, disconnect the electrical connections for the injectors, undo the two fixing bolts and remove the manifold.
