ENGINE MANAGEMENT SYSTEM

The Panda 1108 8v is equipped with a 4 cylinder in line, 8 valve, 1108 cc, single overhead camshaft engine with a MARELLI IAW 59F integrated electronic injection/ignition system.

The system adopted differs considerably from the previous one because the fuel injection is the phased, multiple intermittent type and is compatible with EEC Stage 3 EOBD regulations.

The main modifications to the system can be summarized as follows:

• specific engine management control unit with double connector;
• specific injection/ignition wiring with standardized diagnostic connector;
• intake manifold for multipoint system;
• multipoint type fuel supply system;
• engine timing sensor;
• twin Lambda sensors, upstream and downstream of the catalytic converter;
• catalytic converter integrated in the exhaust manifold and fitted with a special heat shield;
• fuel vapour recirculation system components suitable for meeting EEC stage 3 EOBD regulations;
• unlosable fuel tank cap;
• instrumentation with EOBD warning light.

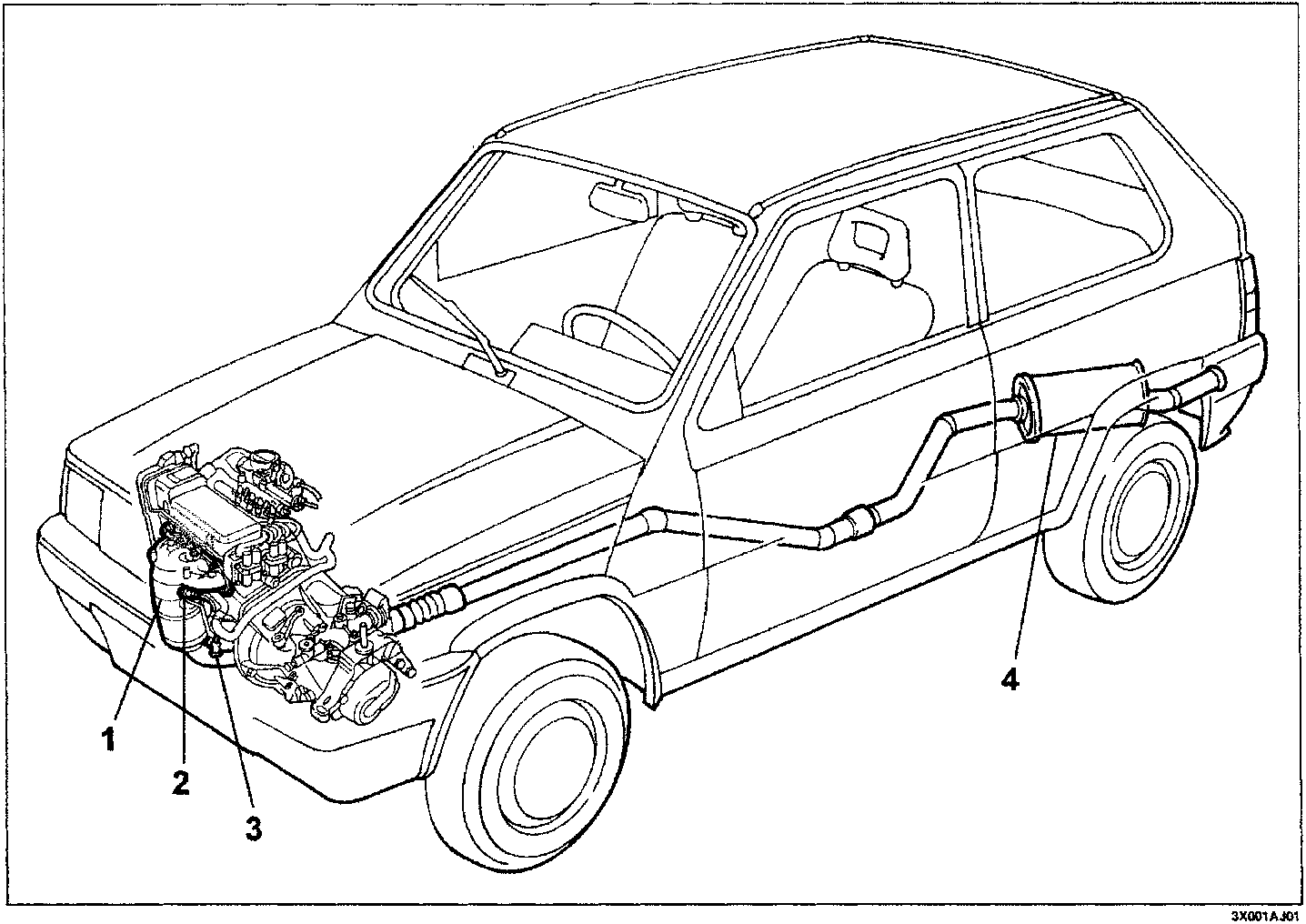

DIAGRAM SHOWING ENGINE EXHAUST ASSEMBLY

1. Catalytic converter integrated with the exhaust manifold
2. Front Lambda sensor
3. Rear Lambda sensor
4. Silencer
