R.R. WINDSCREEN BASE TRIM

Operation 7210E22 · EXTERNAL PARTS

Removing

- 5050B34 windscreen wiper arm/s complete with blade - r+r

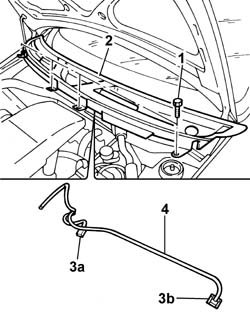

1. Undo the retaining bolts.

2. Release the windscreen base trim.

3. Extract the jets (3a) and (3b) and release the pipes from the fastening clips.

4. Remove the windscreen base trim.

Refitting

Place the jets in their housings and secure the pipes to the fastening clips.

Place the windscreen base trim in position and tighten the fixing bolts.

- 5050B34 windscreen wiper arm/s complete with blade - r+r
