R.R. FRONT WING

Operation 7210E18 · EXTERNAL PARTS

Removing

Lift the bonnet lid.

Protect the corner of the door, the door sill and the front pillar base by applying adhesive tape.

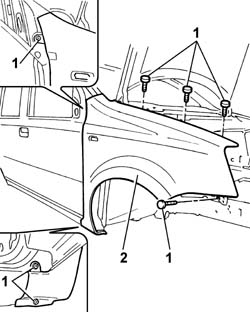

1. Undo the retaining bolts.

2. Remove the front wing.

Refitting

Check the wing is undamaged.

Remove the residues of sealant from the bodyshell and from the wing.

1. Renew the sealant on the front wing (1a) and on the bodyshell (1b).

Position the wing and screw in the bolts and nut without tightening.

Check the wing is aligned with the door and the bonnet lid.

- 7025A10 bonnet lid - square

- 7005A14 front side door - adjust centering and moulding - includes adaptation of hinges and seals on door compartment

Tighten the bolts to torque.
