REAR BUMPER

Operation 7210E66 · EXTERNAL PARTS

Removing

1.3 JTD 16v · SUV

Removing

Position the vehicle on a lift.

Op. 4450B06 LEFT REAR WHEEL R R

Op. 4450B08 RIGHT REAR WHEEL R R

Op. 7055B48 REAR WHEEL ARCH LINER (ONE), LEFT OR RIGHT - R.R.

[Both]

Op. 7055A26 MOULDING ON REAR WHEEL ARCH (ONE) LH OR RH R R

[Both]

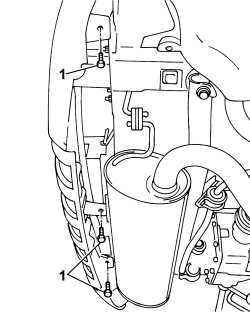

1. Working in the wheel arch compartments, unscrew the side bolts.

1. Undo the lower fixing bolts.

1. Undo the upper retaining bolts.

2. Remove the bumper.

Refitting

1. Position the bumper in its seat.

2. Tighten the upper fixing bolts.

1. Tighten the lower fixing bolts.

1. Working from the wheel arch compartments, tighten the side bolts.

Op. 7055A26 MOULDING ON REAR WHEEL ARCH (ONE) LH OR RH R R

[Both]

Op. 7055B48 REAR WHEEL ARCH LINER (ONE), LEFT OR RIGHT - R.R.

[Both]

Op. 4450B08 RIGHT REAR WHEEL R R

Op. 4450B06 LEFT REAR WHEEL R R

Remove the vehicle from the lift.
