Tail light seat

Operation 7210B75 · Structure elements-central and rear part

Removing

- 7210B82 r r rear sacrificial beam

- 7210B70 R.R. REAR TRIM (structural element)

- 7210E52 R.R. REAR WING

Check if any of the connected parts are deformed by checking body alignment dimensions. Use appropriate measurement tools (reference rigs, templates or gauges).

Straighten the body if necessary.

Use a rotary brush to remove paint to gain access to the weld spots.

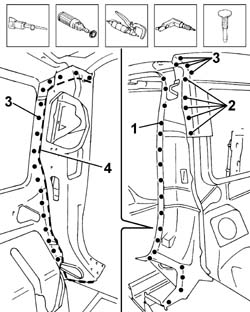

1. Use a chamfering machine to remove the spot welds on the edge shown in the figure.

2. Drill out any weld spots not accessible to the chamfering machine.

3. Using a drill, drill out the spot welds on the roof panel.

4. Using a power saw, cut along the cutting lines illustrated on the inner part of the bodyshell.

Use a chisel and mallet to remove spots drilled previously.

Trim the cut edges from the car.

Straighten the car edges using a mallet and profiled stake.

Use a grinding wheel to remove the spot weld residues.

Use a rotary brush to clean treated areas.

1. Apply the electroweldable paint finish.

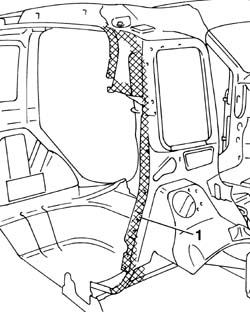

1. Use a grinding wheel to remove the corrosion-proofing from around the inner and outer edge of the parts.

Refitting

1. Position the inner section of the replacement part on the vehicle and secure it in place using self-locking clamps.

Check the alignment and ensure the surrounding gaps are even.

2. Use a spot welder to weld the areas shown in the figure.

3. Using the MIG welder, fill weld in the areas shown in the diagram.

Correct any deformations in the panel using a profiled stake and mallet.

Use a grinding wheel to level the welds

Use a rotary brush to clean the newly-welded areas.

1. Position the outer section of the replacement part on the vehicle and secure it in place using self-locking clamps.

Check the alignment and ensure the surrounding gaps are even.

2. Use a spot welder to weld the areas shown in the figure.

3. Using the MIG welder, fill weld in the areas shown in the diagram.

Correct any deformations in the panel using a profiled stake and mallet.

Use a grinding wheel to level the welds

Use a rotary brush to clean the newly-welded areas.

Apply rust-proofing to newly-welded areas.

Seal the joint lines between the part and the car.

- 7210E52 R.R. REAR WING

- 7210B70 R.R. REAR TRIM (structural element)

- 7210B82 r r rear sacrificial beam
